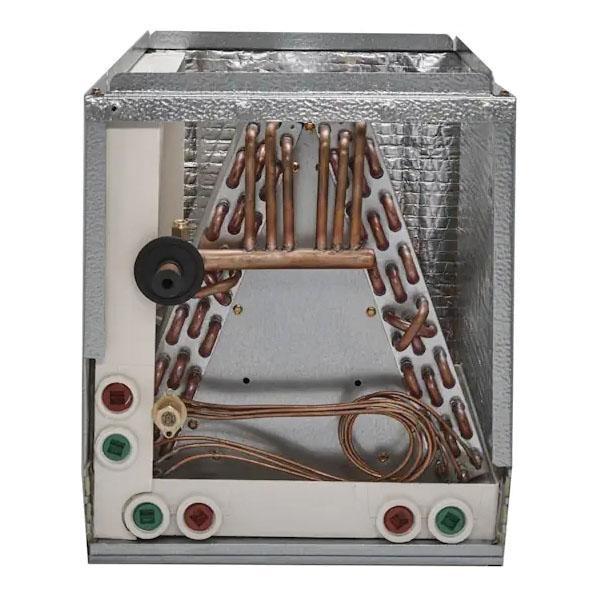

ADP® JG Series JG32136D145B1620AP Evaporator Coil, Cased Coil, 36000 Btu/hr, Steel

Description

ADP® Evaporator Coil, JG Series, 3 ton Nominal Capacity, 36000 Btu/hr, Right Hand, Multi-Position, 13 SEER, R-410A Refrigerant, Cased Coil, 3/4 in Connection, Sweat Connection, 67 mm Piston, Steel, Finish: Embossed Galvanized, 16-1/2 in H x 14-1/2 in W x 21 in D, Domestic/Import: Domestic

Features

• FlexCoil: Engineered for all refrigerants
• Lower heights and variable widths for a perfect furnace fit
• Cased, uncased, multi-position and upflow/downflow configurations
• Built-in plenum flanges with rounded corners for fast and safe installation
• Front panel with only four screw access and non-captive refrigerant lines for fast and easy coil access
• Available in copper or aluminum
• Painted cabinet options for furnace color coordination
