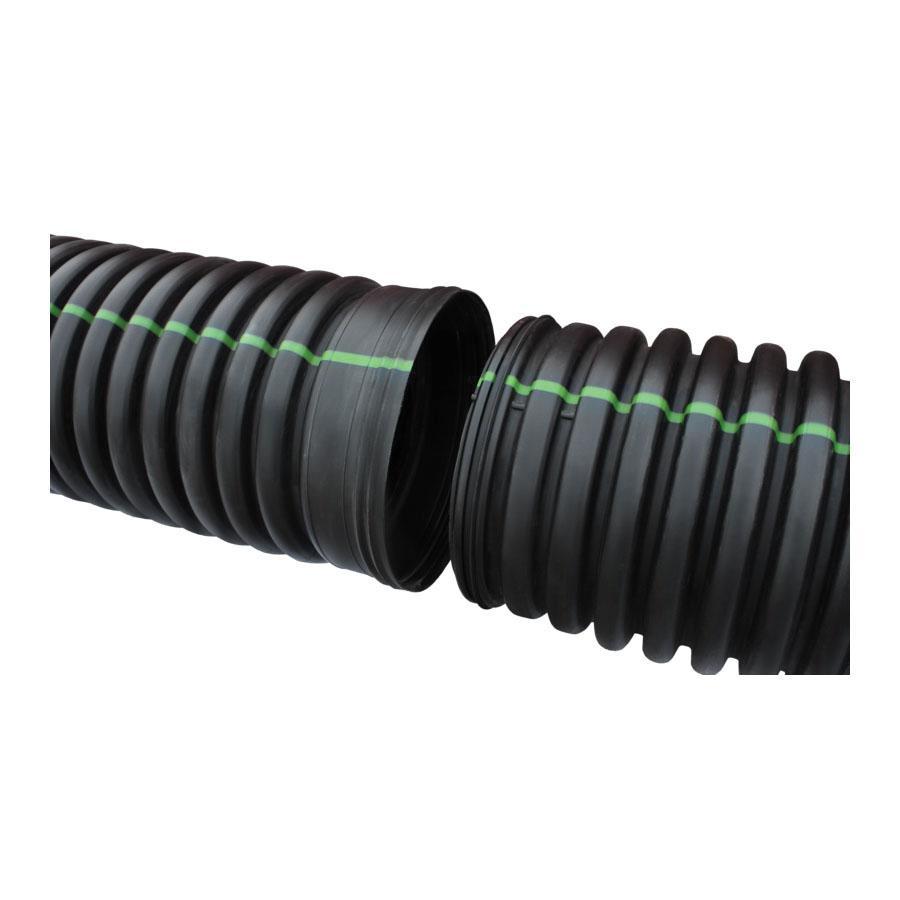

ADS® N-12 Series 18850020DW Solidtight Solid Dual-Wall Pipe, 18 in Nominal Pipe, Bell End x Spigot, 18 in ID, 22 in OD

Mfg Part #: 18850020DW

Part #: ADS18850020DW

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerAdvanced Drainage Systems

BrandADS®

Mfg Part #18850020DW

Part #ADS18850020DW

Sold AsEach

Package Qty0

Min Order Qty20

Weight0.0

Standards/ApprovalsASTM F2648|ASTM F2306|ASTM D2321

ApplicationFor storm sewers, golf turf and recreation, mining forestry and industrial, land reclamation, retention and detention, waterways, grain aeration and ditch enclosures

Description

ADS® Solidtight Solid Dual-Wall Pipe, N-12 Series, 18 in Nominal Pipe, Bell End x Spigot Connection, 18 in Inside Diameter, 22 in Outside Diameter, 20 ft Length, Material Standard: ASTM D3350, Polyethylene, -10 to 120 deg F

The dual wall N-12® pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high-density polyethylene, dual wall N-12® corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).

Features

Smooth interior with a manning's value of 0.012 resulting in increased flow capacity
Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils and effluent
Lightweight product for best installed cost and maximizing delivery and installation efficiencies
Structurally designed corrugated exterior to support typical construction and long-term loading
Soft, paste like compound
High-performance pipe joint lubricant
NSF certified for potable water pipelines
Contains no petroleum, will not swell gaskets
Non-toxic, no objectionable odor
Will not support bacteria
Effect on gaskets-less than 1% weight gain and less than 1 duro hardness loss
Effectively lubricates pipe and pipe gaskets for safe and efficient assembly
