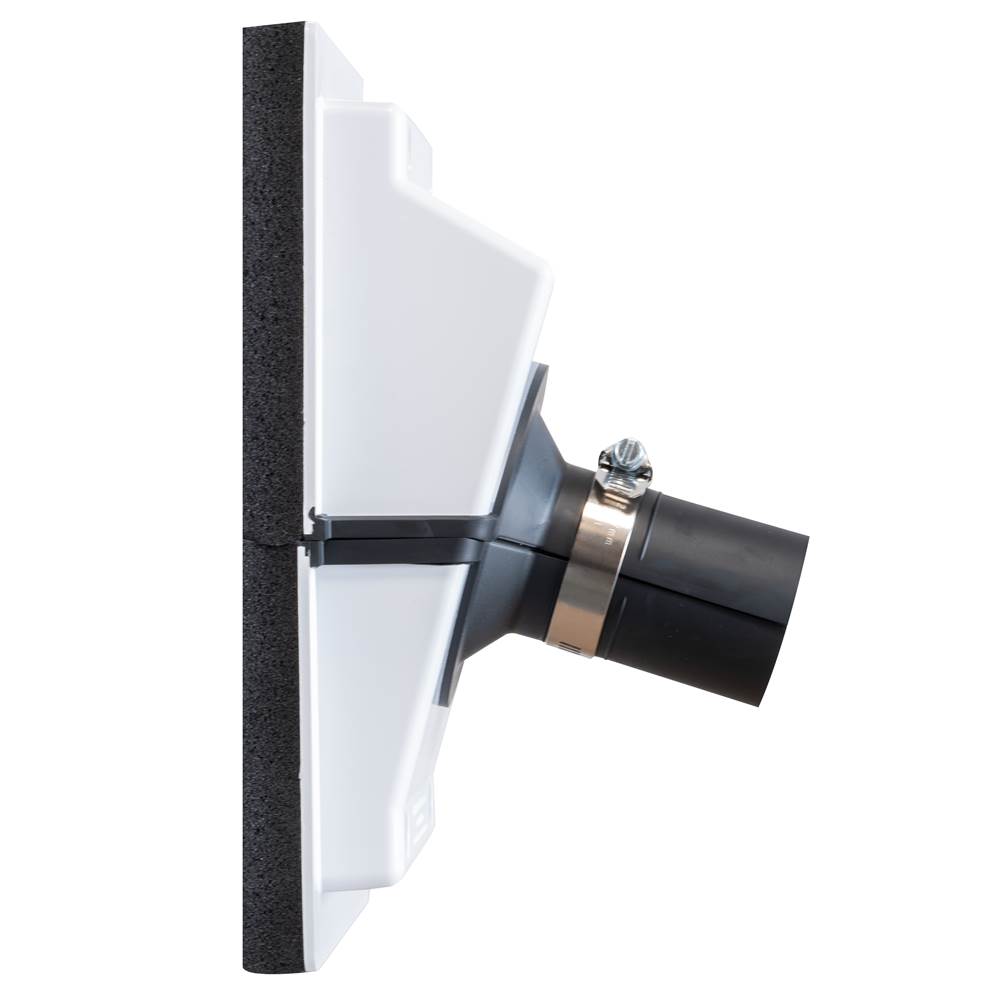

Titan Outlet TRS Retrofit White For 1/2 in Insulation

Description

TRS-550-W AIREX TITAN OUTLET Retrofit Pipe Penetration Seal with 3/4 in Gasket, White color for Piping with 1/2 in Insulation Wall Thickness or Line Set with 1-3/4 in Diameter

The AIREX TITAN OUTLET is an engineered wall enclosure system that seals and protects HVACR piping penetrations from weather damage, air leakage, pipe vibration, and pests to help HVACR professionals aesthetically meet mandatory building requirements and energy efficiency standards. Utilizing weather resistant and outdoor durable engineered polymers, the AIREX TITAN OUTLET enclosure is made of ASA polymer, while the elastomeric outlet sleeve is made of an engineered TPE polymer for airtight sealing around HVAC piping. The enclosure and sleeve are bonded together through a process called over-molding, chemically and mechanically bonding them together as one piece. The wall surface gasket attached to the outlet enclosure is durable PVC foam that creates a positive seal on irregular surfaces. Included accessories consist of 4 carbon steel anchor screws and one stainless-steel clamp to ensure outdoor installation durability. Utilize the AIREX TITAN OUTLET to aesthetically meet mandatory building requirements and energy efficiency standards.

Features

• 10 year warrenty
• Outdoor UV rated
• Brick/siding/PBR/stucco
