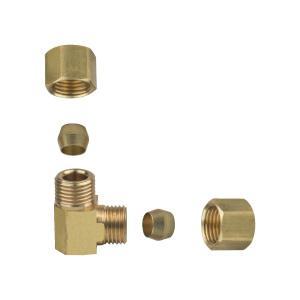

BrassCraft® 65-4X Compression Union Elbow, 1/4 in OD Tube x 1/4 in OD Tube, Brass, Rough

Description

BrassCraft® Compression Union Elbow, 65 Series, Elbow Fitting, Connection Size 1: 1/4 in, Connection Type 1: OD Tube, Connection Size 2: 1/4 in, Connection Type 2: OD Tube, Tube|Tube Connection, Brass, Material Construction: Brass, Finish: Rough, 0.46 in Hex, For Use With: Aluminum, Copper and Plastic Tubes, 1.14 in H x 1.14 in W, 300 psi, -65 to 250 deg F, Additional Information: 0.03 in THK Tube Wall

Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.

Features

• Machined from brass
• Not recommended for steel tubing
• Little to no tube preparation required
• Connection does not require flaring, soldering or other types of tube preparation
• Plastic and PEX tubing installations require sleeves and/or inserts
