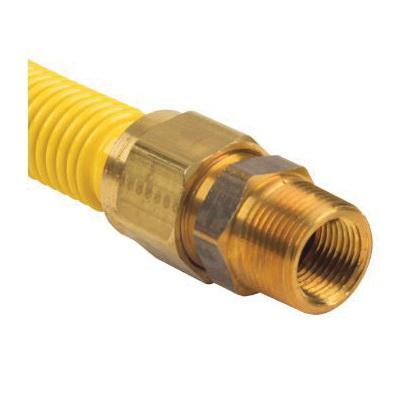

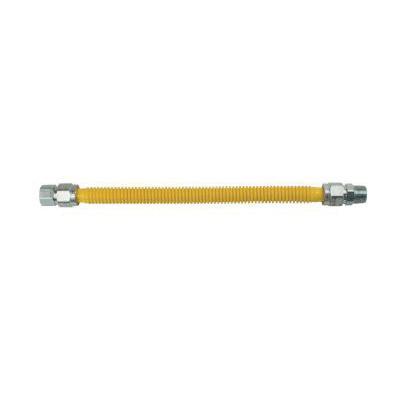

BrassCraft® CSSB Series CSSB21-24 Gas Appliance Connector, 3/4 in, 24 in L, 3/4 in ID, 7/8 in OD, FIP x MIP

Description

BrassCraft® Gas Appliance Connector, CSSB Series, FIP x MIP Connection, 3/4 in Fitting, 290900 Btu/hr, 465440 Btu/hr, 24 in Length, 3/4 in Inside Diameter, 7/8 in Outside Diameter, 0.5 psi, Stainless Steel, Yellow, Finish: Polymer-Coated, -40 to 150 deg F, Domestic/Import: Domestic

BrassCraft® ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer-coating is designed to withstand prolonged exposure to harsh household chemicals, UV-rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high-temperatures to provide a uniform-coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion-resistance available.

Features

• Corrugated stainless steel with corrosion-resistant coating
• Superior corrosion-resistance to harsh chemicals found in most common household cleaning, plumbing repair and masonry products when compared with uncoated gas connectors
• Easy-to-remove handle protects against accidental operation during rough-ins
• Designed, machined and assembled in the USA
• Strong and flexible with greater depth and number of corrugations to withstand greater torque and bend cycles
• Smoother, burnished flare on connector ends seal with less torque
• Uniform coat over entire length of connector for complete corrosion-resistance of the stainless steel core
• 100% factory leak tested
