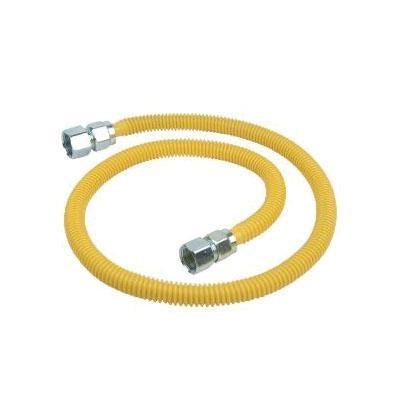

BrassCraft® CSSC Series ProCoat CSSC22-12 Gas Connector, 3/4 x 3/4 in, 12 in L, 1/2 in ID, 5/8 in OD, FIP x FIP thumbnail 1

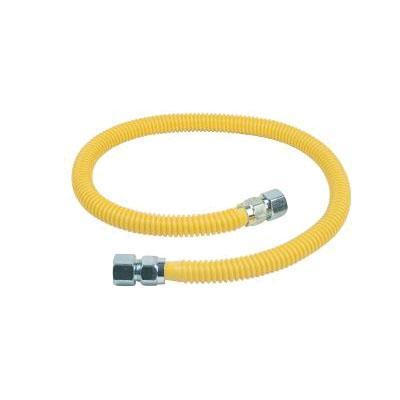

BrassCraft® CSSC Series ProCoat CSSC22-12 Gas Connector, 3/4 x 3/4 in, 12 in L, 1/2 in ID, 5/8 in OD, FIP x FIP thumbnail 2

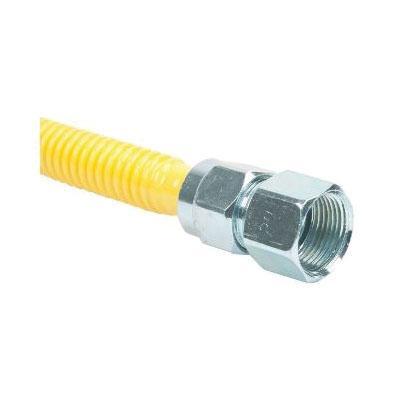

BrassCraft® CSSC Series ProCoat CSSC22-12 Gas Connector, 3/4 x 3/4 in, 12 in L, 1/2 in ID, 5/8 in OD, FIP x FIP thumbnail 3

BrassCraft® CSSC Series ProCoat CSSC22-12 Gas Connector, 3/4 x 3/4 in, 12 in L, 1/2 in ID, 5/8 in OD, FIP x FIP thumbnail 4

BrassCraft®Supply Connectors

BrassCraft® CSSC Series ProCoat CSSC22-12 Gas Connector, 3/4 x 3/4 in, 12 in L, 1/2 in ID, 5/8 in OD, FIP x FIP

Mfg Part #: CSSC22-12

Part #: BRCSSC2212

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerBrassCraft Manufacturing Company

BrandBrassCraft®

Mfg Part #CSSC22-12

Part #BRCSSC2212

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0

Standards/ApprovalsANSI Z21.24/CSA 6.10|ANSI Z21.75/CSA 6.27|CSA Certified

ApplicationFor indoor and outdoor use

Description

BrassCraft® Gas Connector, CSSC Series, ProCoat Collection, FIP x FIP Connection, 3/4 x 3/4 in Fitting, 180000 Btu/hr NG, 288000 Btu/hr LPG, 12 in Length, 1/2 in Inside Diameter, 5/8 in Outside Diameter, 0.5 psi, Stainless Steel, Finish: Polymer Blend-Coated, -40 to 150 deg F, Domestic/Import: Domestic

BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

Features

1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
Ideal for large demand appliances such as 5-burner+ gas ranges, furnaces and smaller BTU residential tankless water heaters
Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures
ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
Smooth, burnished connector ends seal with less torque, making installation easier
High tensile strength stainless steel is less susceptible to work hardening
Deep corrugations enhance flexibility and maneuverability of connector during installation
Gas connector is 100% leak tested
Approved for indoor and outdoor use
Temperature rating: -40degF to 150degF
Pressure rating: 1/2 psi maximum
Designed, machined and assembled in the USA
Includes: 3/4 in. MIP steel fitting and 3/4 in. FIP inlet brass angle gas ball valve
