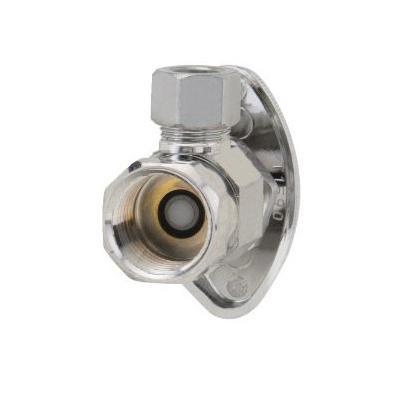

BrassCraft® OR17X C Multi-Turn Angle Stop, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body, Chrome-Plated thumbnail 1

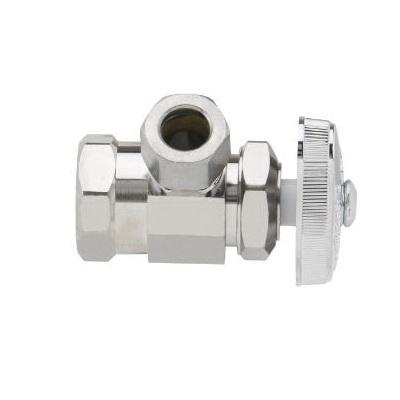

BrassCraft® OR17X C Multi-Turn Angle Stop, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body, Chrome-Plated thumbnail 2

BrassCraft® OR17X C Multi-Turn Angle Stop, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body, Chrome-Plated thumbnail 3

BrassCraft® OR17X C Multi-Turn Angle Stop, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body, Chrome-Plated thumbnail 4

BrassCraft®Supply Stop Valves

BrassCraft® OR17X C Multi-Turn Angle Stop, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body, Chrome-Plated

Mfg Part #: OR17X C

Part #: BROR17XC

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerBrassCraft Manufacturing Company

BrandBrassCraft®

Mfg Part #OR17X C

Part #BROR17XC

Sold AsEach

Package Qty0

Min Order Qty1

Weight14.4 lb

Standards/ApprovalsASME A112.18.1|CSA B125.1|cUPC Certified|IAPMO Approved

ApplicationFor use in potable water distribution systems in accessible locations only, not intended for recirculation systems/continuous use temperatures above 115 deg F, for those applications, use our KTTM series ball stop

Description

BrassCraft® Multi-Turn Angle Stop, 1/2 x 3/8 in Nominal, FIP x Compression Connection, 125 psi, Rubber Softgoods, Brass Body, ABS/Metal/Polycarbonate Handle, Finish: Chrome-Plated, 40 to 140 deg F, 1.14 in Dia x 2.15 in H x 2.49 in W, Domestic/Import: Domestic, Additional Information: 1.15 in Top to inlet Center

BrassCraft® 1/2 in FIP inlet x 3/8 in OD compression outlet multi-turn angle valve controls water flow to household plumbing fixtures, faucets, toilets, dishwashers, icemakers, washing machines and more. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning-off water to the entire home.

Features

Machined one-piece body construction for strength, durability and long-lasting performance
Compatible with iron pipe
Multi-turn operation means water flow control with only a few turns of the handle
Easy-to-remove handle protects against accidental operation during rough-ins
One-piece shut-off mechanism provides smooth on/off operation
Designed, machined and assembled in the USA
