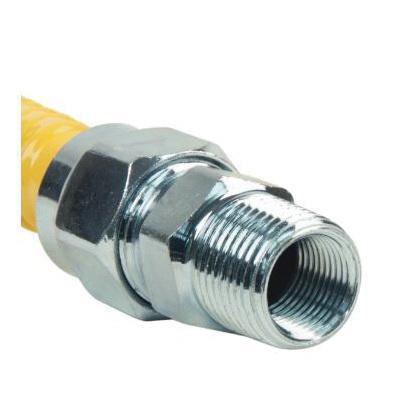

BrassCraft® CSSC Series CSSC54-24 Gas Appliance Connector, 1/2 in, 24 in L, 1/2 in ID, 5/8 in OD, FIP x MIP thumbnail 3

BrassCraft® CSSC Series CSSC54-24 Gas Appliance Connector, 1/2 in, 24 in L, 1/2 in ID, 5/8 in OD, FIP x MIP thumbnail 4

BrassCraft®Supply Connectors

BrassCraft® CSSC Series CSSC54-24 Gas Appliance Connector, 1/2 in, 24 in L, 1/2 in ID, 5/8 in OD, FIP x MIP

Mfg Part #: CSSC54-24

Part #: BRSSC5424

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerBrassCraft Manufacturing Company

BrandBrassCraft®

Mfg Part #CSSC54-24

Part #BRSSC5424

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0

Standards/ApprovalsANSI Z21.24, Z21.75|CSA 6.10, 6.27

ApplicationFor use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures, ideal for large demand appliances such as 5-burner gas ranges, furnaces and smaller Btu residential tankless water heaters, for indoor use

Description

BrassCraft® Gas Appliance Connector, CSSC Series, FIP x MIP Connection, 1/2 in Fitting, 150000 Btu/hr, 240000 Btu/hr, 24 in Length, 1/2 in Inside Diameter, 5/8 in Outside Diameter, 0.5 psi, Stainless Steel, Yellow, Finish: Polymer Blend, -40 to 150 deg F, Domestic/Import: Domestic

BrassCraft® ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer-coating is designed to withstand prolonged exposure to harsh household chemicals, UV-rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high-temperatures to provide a uniform-coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion-resistance available.

Features

Corrugated stainless steel with corrosion-resistant coating
Designed, machined and assembled in the USA
Superior corrosion-resistance to harsh chemicals found in common household cleaning, plumbing repair and masonry products
Greater strength and flexibility with greater depth and number of corrugations to withstand greater torque and bend cycles
Outperforms industry standards for torsion (1.5X) without compromising the integrity of the coating or connector
Outperforms industry standard for repeated bending (2X) without compromising the integrity of the coating or connector
One-piece construction has no soldered of brazed joints
Uniform coat over entire length of connector for complete corrosion-resistance of the stainless steel core
100% factory leak tested
