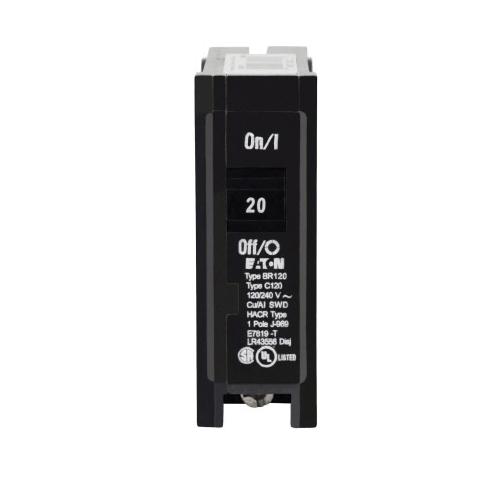

EATON BR120 Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 -Pole, Thermal Magnetic Trip thumbnail 2

EATON BR120 Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 -Pole, Thermal Magnetic Trip thumbnail 3

EatonThermal-Magnetic Circuit Breakers

EATON BR120 Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 -Pole, Thermal Magnetic Trip

Mfg Part #: BR120

Part #: CUHBR120

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerEaton

BrandEaton

Mfg Part #BR120

Part #CUHBR120

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0

Standards/ApprovalsARRA Compliant|Buy American Act Compliant|Federal Specification W-C376|RoHS Compliant|UL 490

ApplicationFor Type BR load centers and circuit protection applications

Description

EATON Molded Case Circuit Breaker, 20 A, 120/240 VAC, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Thermal Magnetic Trip, NEMA 1, 3R, 4X Enclosure, 14 to 4 AWG Wire, Plug-On Mounting, 600 to 750 deg C, 1 in Width, 2-1/2 in Length, 3 in Height

EATON Type BR plug-in breakers in the standard 1 in per pole molded case and can be used as main and/or branch disconnect devices. All are CSA and UL listed. Typical ampacity range for BR breakers is 15 through 125 A.

Features

All BR circuit breakers have rejection tab feature
Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip-free handle design
Standard interrupting capacity
All are type IC (interchangeable) devices, several ratings are SWD and HARC approved
Contacts shall be of non welding silver alloy
All circuit breakers shall have the trip rating inscribed on the handle on each circuit breaker pole
Circuit breakers shall be completely enclosed in a molded case of thermoset material
Terminals shall be of the box lug or clamp type design
