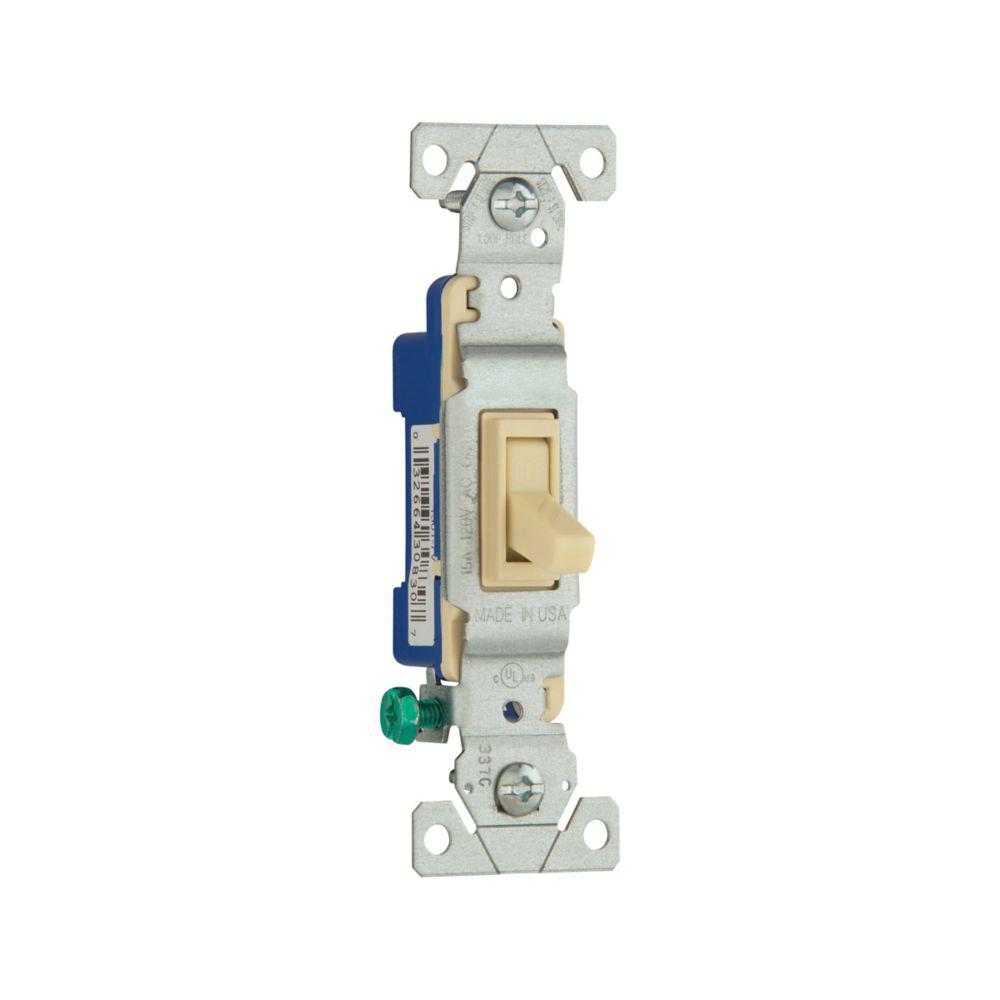

EATON 1301-7V Toggle Switch, 120 VAC, 15 A

Description

EATON Toggle Switch, 120 VAC, 15 A, Side and Push Wired Connection, 1 Poles, Residential Grade, Flush Mounting, Polycarbonate Body, 14 to 10 AWG Wire, Ivory, 3.28 in Height, 0.88 in Width, 1.31 in Depth, Additional Information: 14 lbf-in Torque Rating, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen, Motor Control Load Type

Features

• Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility
• Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• Long, broad mounting strap virtually eliminates floating installations
