INFILTRATOR® Quick5® Series Q5STD Standard Chamber With Multi-Port End Cap, 60 in L Effective Length, 56.5 gal Capacity

Mfg Part #: Q5STD

Part #: INFILQ5STD

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerInfiltrator Water Technologies, LLC

BrandINFILTRATOR®

Mfg Part #Q5STD

Part #INFILQ5STD

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0 lbs.

Standards/ApprovalsIAPMO Certified

ApplicationFor 36 in W trench, curved, straight or side by side in beds

Description

INFILTRATOR® Standard Chamber, Quick5® Series, 65 in Length, 34 in Width, 12 in Height, 60 in Effective Length, 56.5 gal Capacity, 8 in Invert Height, 8 in Louver Height

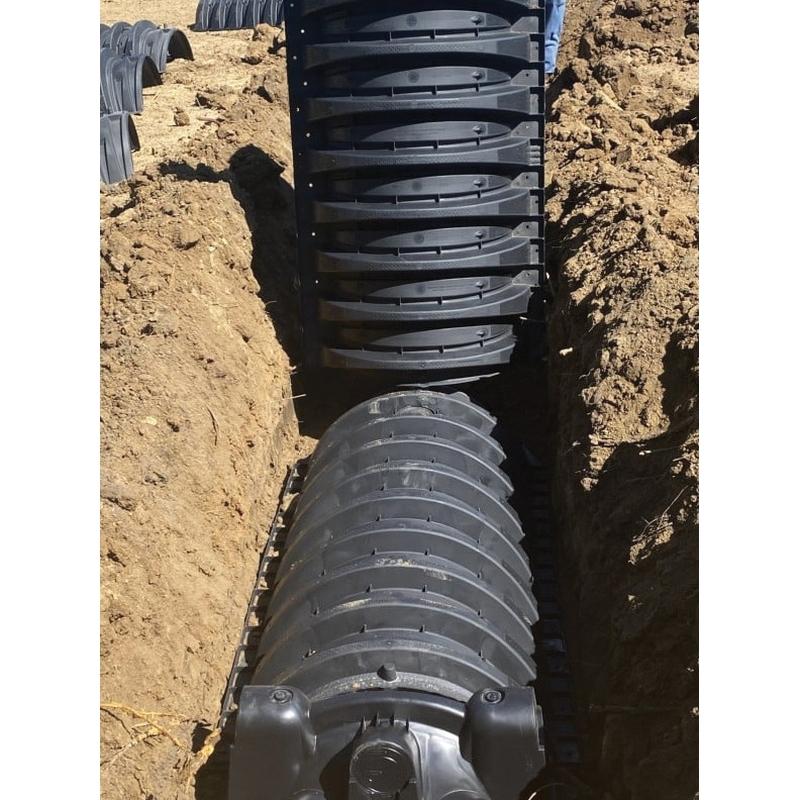

The Quick5® Standard Chamber fits in a 36 in wide trench and is ideal for curved or straight systems. It features the patented Contour Swivel Connection™ which permits turns up to 10 deg, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber's five-foot length provides optimal installation flexibility.

Features

Advanced contouring connections swivel up to 10 deg, right or left
Latching mechanism allows for quick installation
Less chambers needed for faster installation
Supports wheel loads of 16,000 lbs/axle with 12 in of cover
Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
