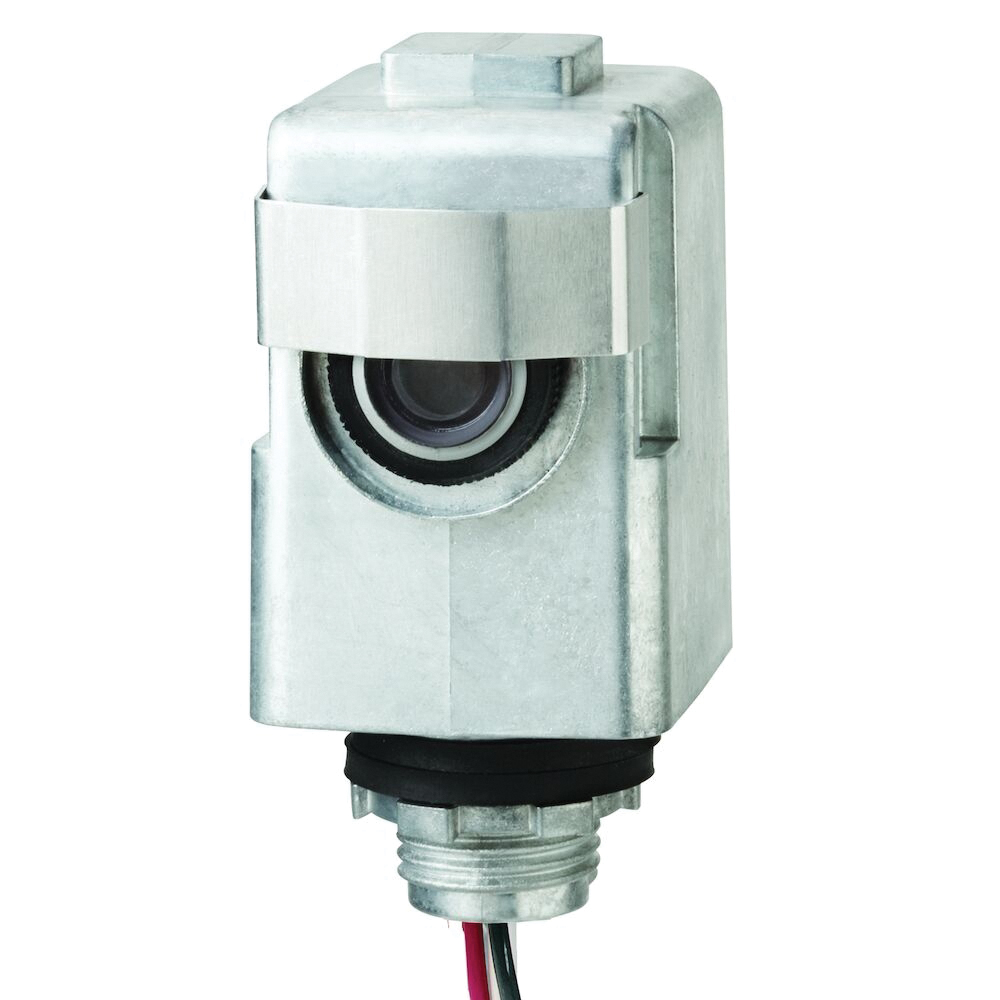

Intermatic® K4421M Thermal Photocontrol, 120 VAC, 15 A Tungsten Rating, 8.3 A Ballast Load, SPST Switch, Stem Mounting

Description

Intermatic® Thermal Photocontrol, 120 VAC, 15 A Tungsten, 8.3 A Ballast, 50/60 Hz, Thermal Sensor, SPST Switch, 30 to 90 s Time Delay, 18 AWG Wire, -40 to 158 deg F, Stem Mounting, Zinc Housing, Gray, 3 in H x 1.563 in W x 1.563 in D

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1/2"-14 NPSM thread or 7/8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

Features

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Delay feature prevents unwanted OFF switching
• Die-cast metal housing
• 1/2"-14 NPSM threaded stem
• Washer gasket and locking nut included
• #18 AWG, 9" wire lead
