IPS® Redi-Vent® 20299 Air Admittance Valve, 1-1/2 or 2 in, 20 DFU, ABS

Description

IPS® Air Admittance Valve, Redi-Vent® Collection, 1-1/2 or 2 in Connection, DFU Rating: 20 DFU, -40 to 150 deg F, ABS, Domestic/Import: Domestic, For Use With: 1-1/2 and 2 in Pipes

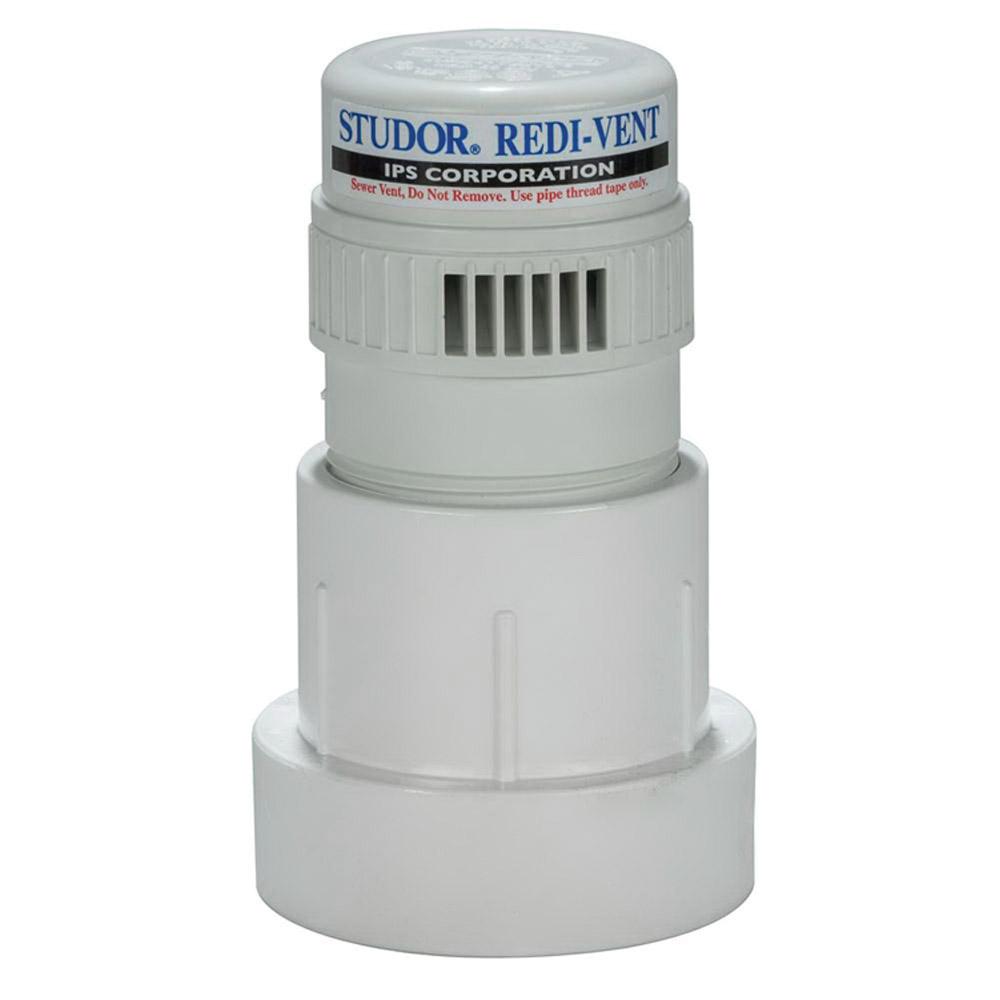

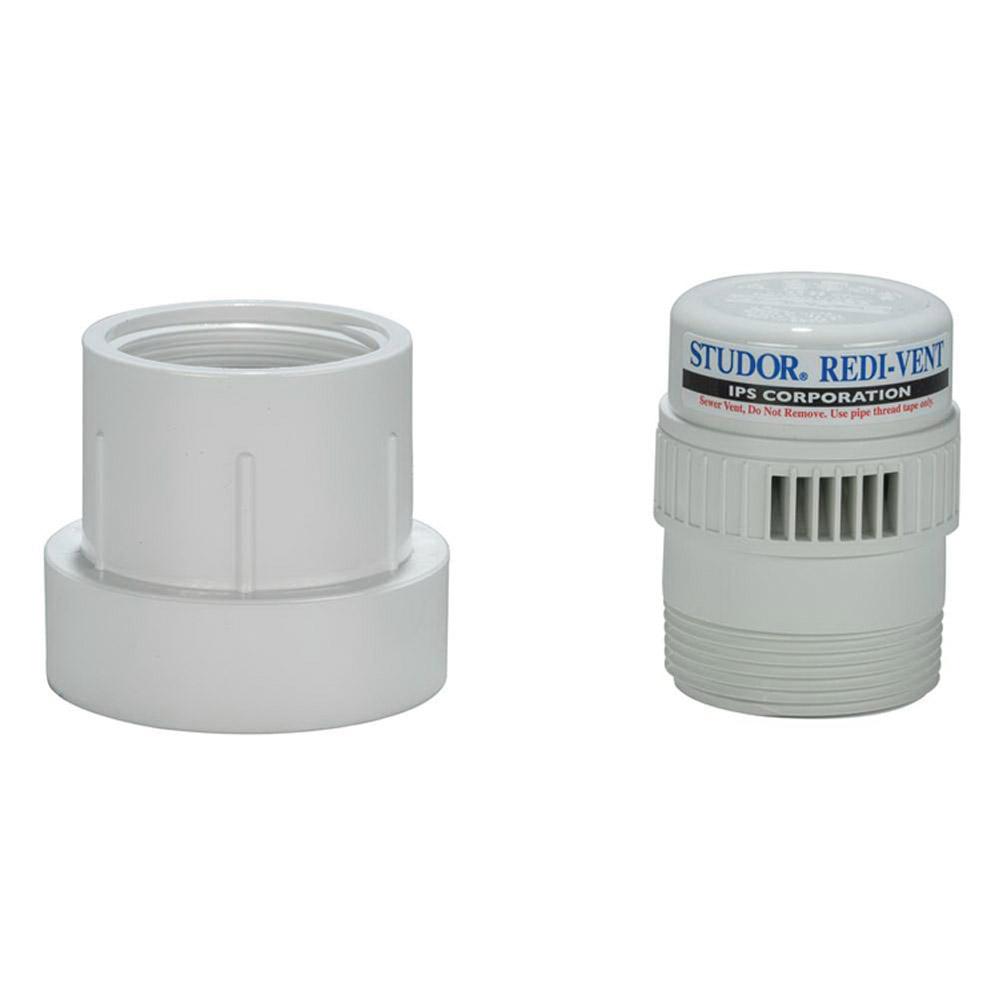

With its compact design, the Studor® Redi-Vent® air admittance valve with PVC adapter offers a simple drain and waste venting solution. Great for venting a single fixture or a group of bathroom fixtures, the Redi-Vent® air admittance valve is designed to fit 1-1/2 in and 2 in pipes and excels in tight applications. This 1 way valve automatically opens and takes in fresh air when negative pressure (suction) occurs from a fixture discharging into the plumbing system. When the water flow stops, the Redi-Vent® closes naturally due to gravity, preventing the circulation of any bad bathroom or drain odors.

Features

• The unique design of the Studor® Redi-Vent® provides ventilation to prevent the loss of water seals in traps without the need for expensive roof penetration and vent piping
• Simplify drainage and waste venting with the Studor® Redi-Vent® air admittance valve
• Exclusive vermin protection system
• Expands architectural design limits
• Compact design for tight applications
