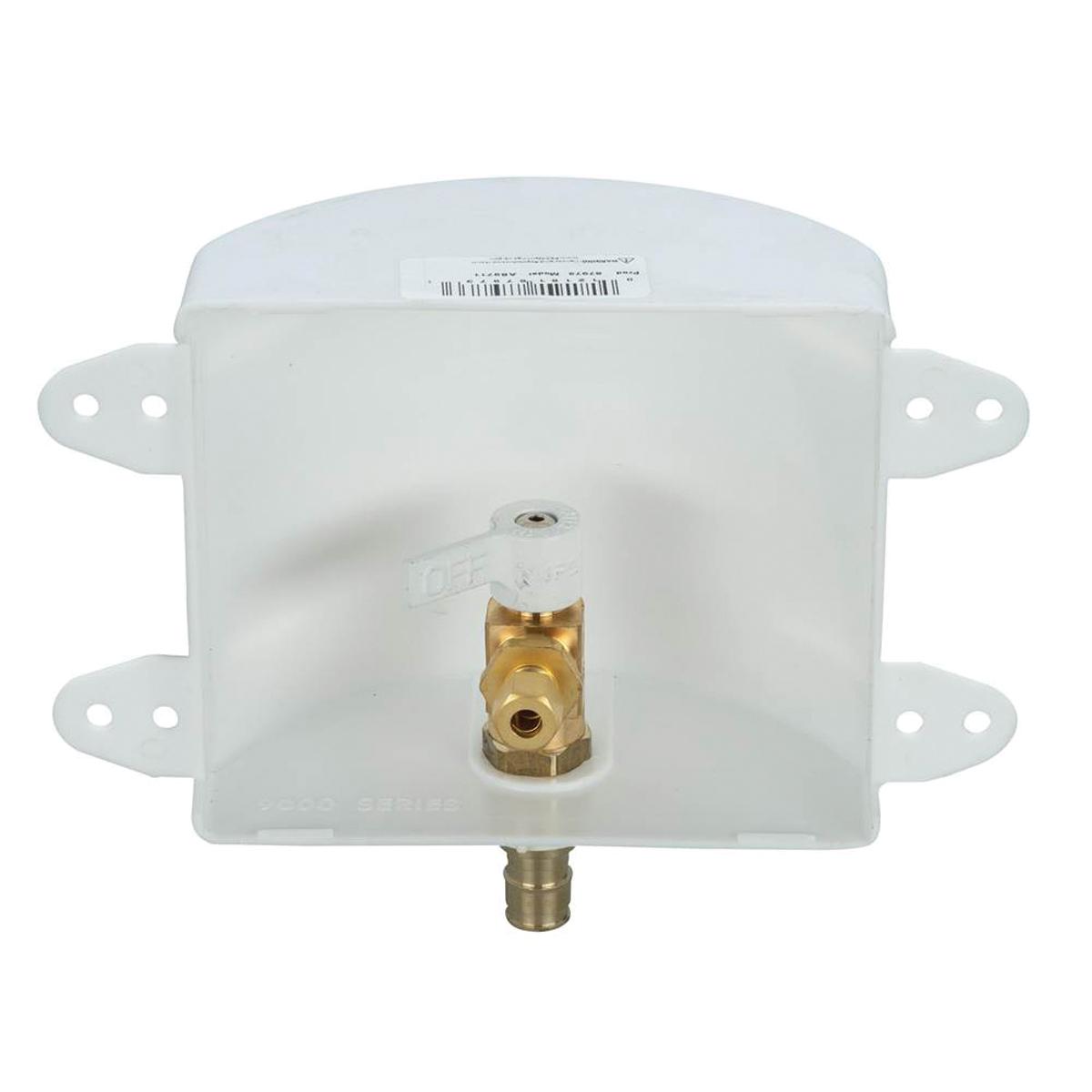

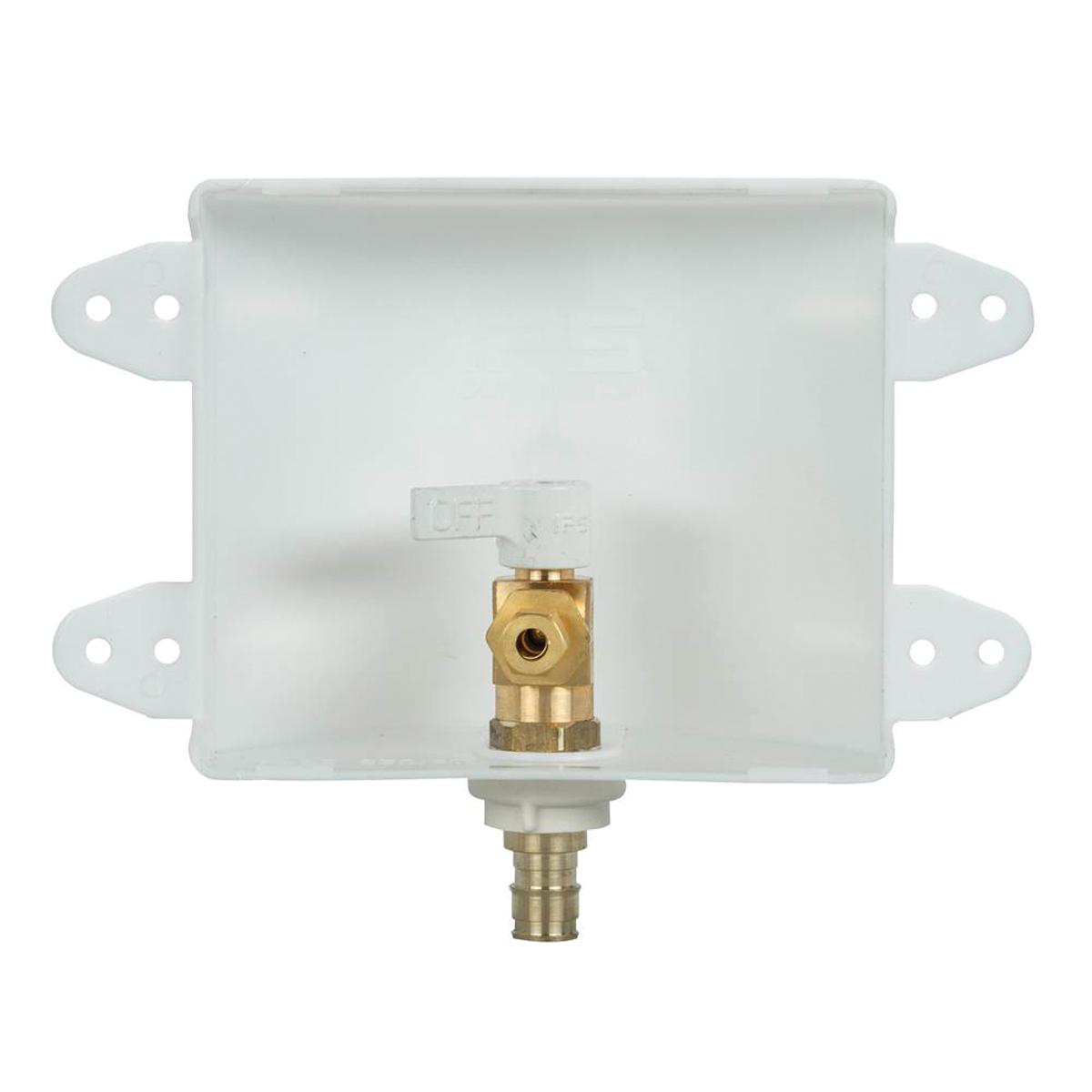

IPS® 87973 Ice Maker Outlet Box With Quarter Turn Hammer Arrestor Valve, Plastic Body

Description

IPS® Ice Maker Outlet Box, Square Shape, Plastic Body, 9 in Length, 3-3/4 in Width, 9.18 in D

The Water-Tite square ice maker outlet box features a special contoured design that offers quick and easy valve access. Its one-piece box and flange construction delivers ideal mounting stability, requiring no additional support framing. This outlet box includes one pre-installed lead-free brass valve, which complies with NSF 61-G requirements. The Water-Tite square ice maker outlet box comes with a snap-on faceplate that measures 8-1/4 in W x 7-5/16 in H and is able to accommodate up to 3/4 in drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

Features

• Lead-free
• Rough opening 5-3/4 in width x 4-7/8 in height x 3-1/2 in depth, faceplate dimension 8-1/4 in width x 7-15/16 in height
• One-piece box and flange design needs no additional support framing nor support framing labor
• Snap-on faceplate accommodates up to 3/4 in drywall
• Contour box design allows easy valve access
• Products covered by one or more of the following patents D411,870, D471,960
