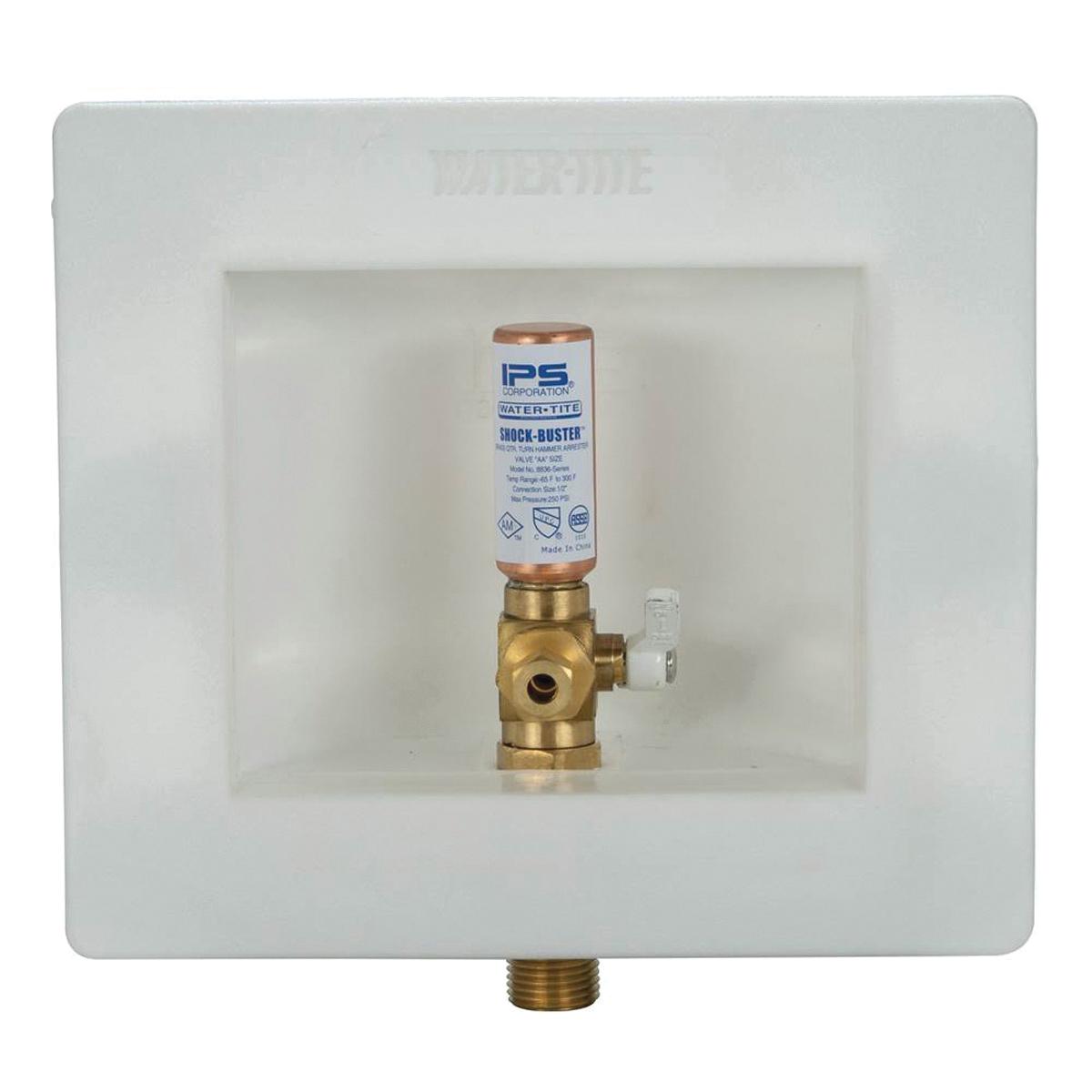

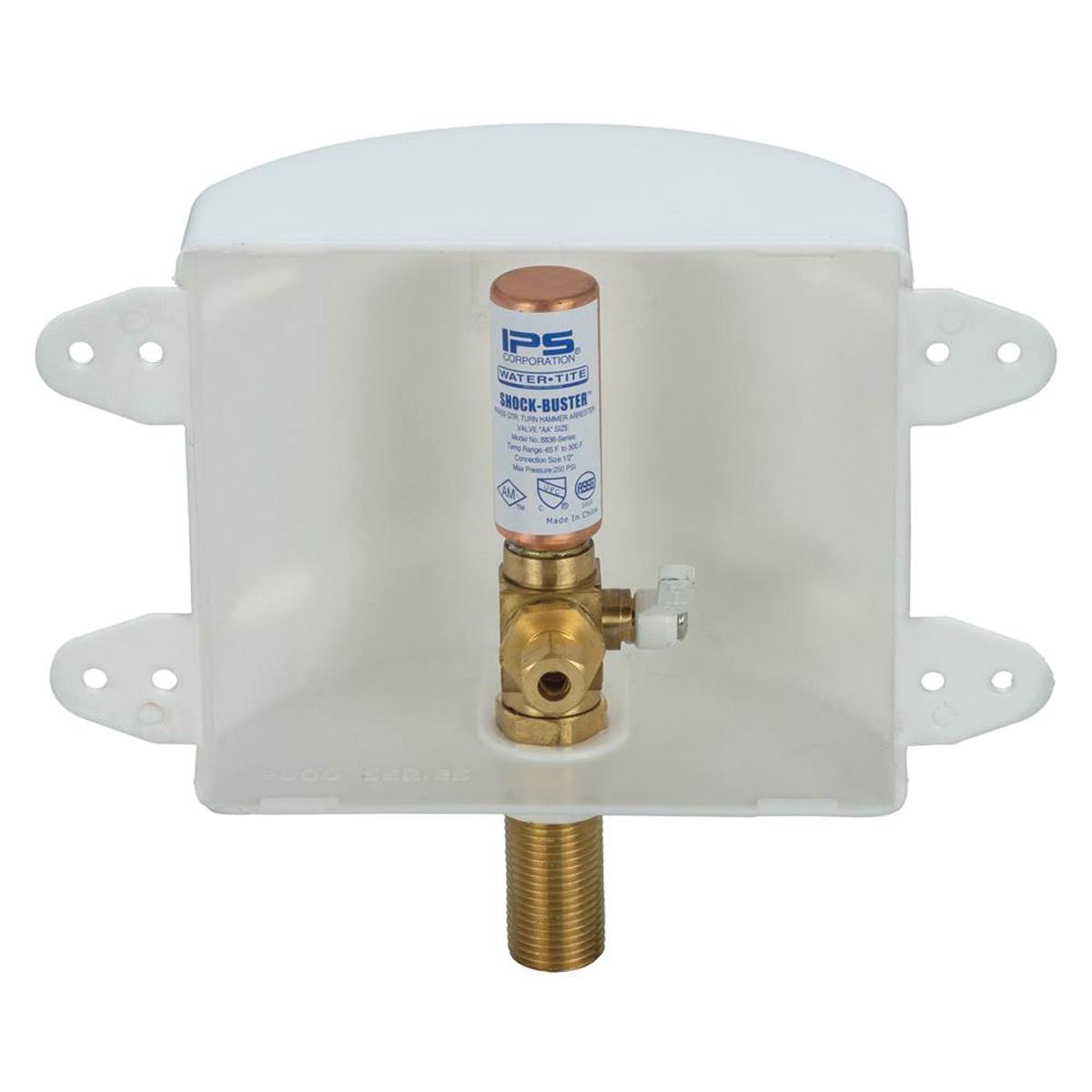

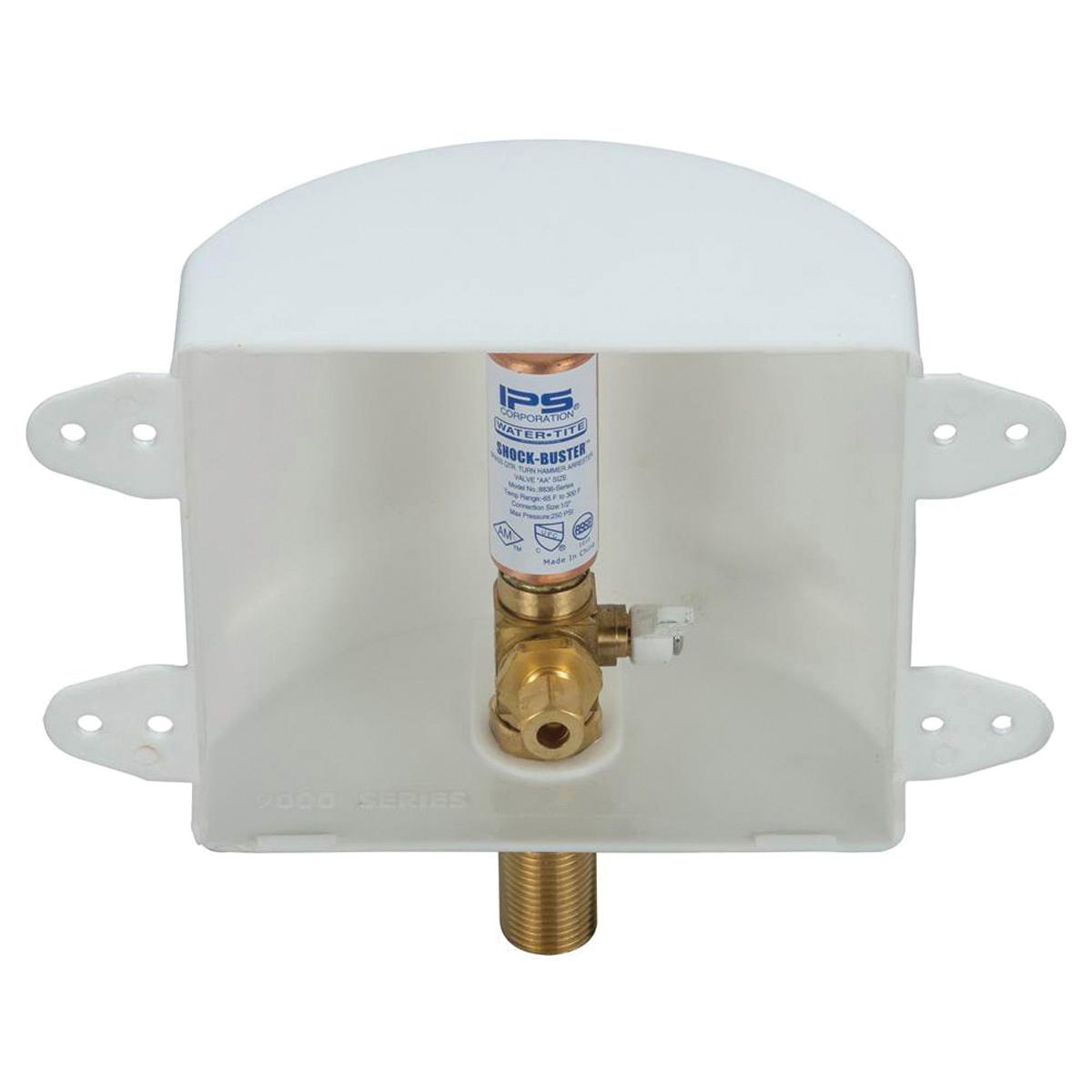

IPS® AB Series AB9700HA 87978 Ice Maker Outlet Box With Arrester Valve, 1/2 in, Sweat, Quarter-Turn Valve, Plastic Box

Description

IPS® Ice Maker Outlet Box With Arrester Valve, AB Series, Model: AB9700HA, 1/2 in Connection, Sweat Connection, Quarter-Turn Valve, 5-3/4 in Box Width, 3-1/2 in Box Depth, 4-7/8 in Box Height, Plastic Box, 8-1/4 in Faceplate Width, 7-15/16 in Faceplate Height

The WATER-TITE square ice maker outlet box features a special contoured design that offers quick and easy valve access. Its one-piece box-and-flange construction delivers ideal mounting stability, requiring no additional support framing. This outlet box includes one pre-installed lead-free brass valve that has an integrated hammer arrester, which absorbs sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. the WATER-TITE square ice maker outlet box comes with a snap-on faceplate that measures 8-1/4 in W by 7-5/16 in H and is able to accommodate up to 3/4 in drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

Features

• Rough opening 5-3/4 in W x 4-7/8 in H x 3-1/2 in D, faceplate dimension 8-1/4 in W x 7-5/16 in H
• One-piece box and flange design needs no additional support framing nor support framing labor
• Snap-on faceplate accommodates up to 3/4 in drywall
• Contour box design allows easy valve access
• Products covered by one or more of the following patents ABS0 D411,870, D471,960
• Low-lead compliant
