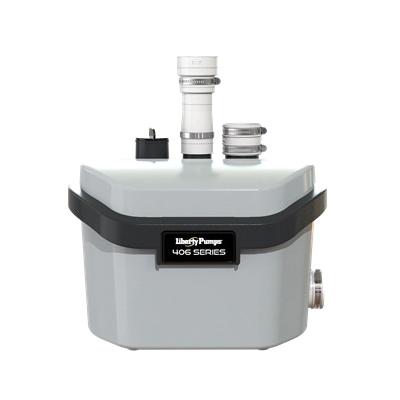

Liberty Pumps® 406 Drain Pump, 115 V, 1.7 A, 60 Hz, 1/6 hp, ABS

Description

Liberty Pumps® Drain Pump, 115 V, 1.7 A, 60 Hz Frequency, HP Rating: 1/6 hp, 3450 rpm Speed, 1 in, 1-1/4 in, 1-1/2 in Discharge, 9 ft Cord Length, 7.6 L Capacity, Maximum Feet of Head: 12 ft, Insulation Class: B, 120 deg F, Polymer Impeller, Dimensions: 14.1 in H x 13.2 in W x 10.7 in D, ABS, Electroplated

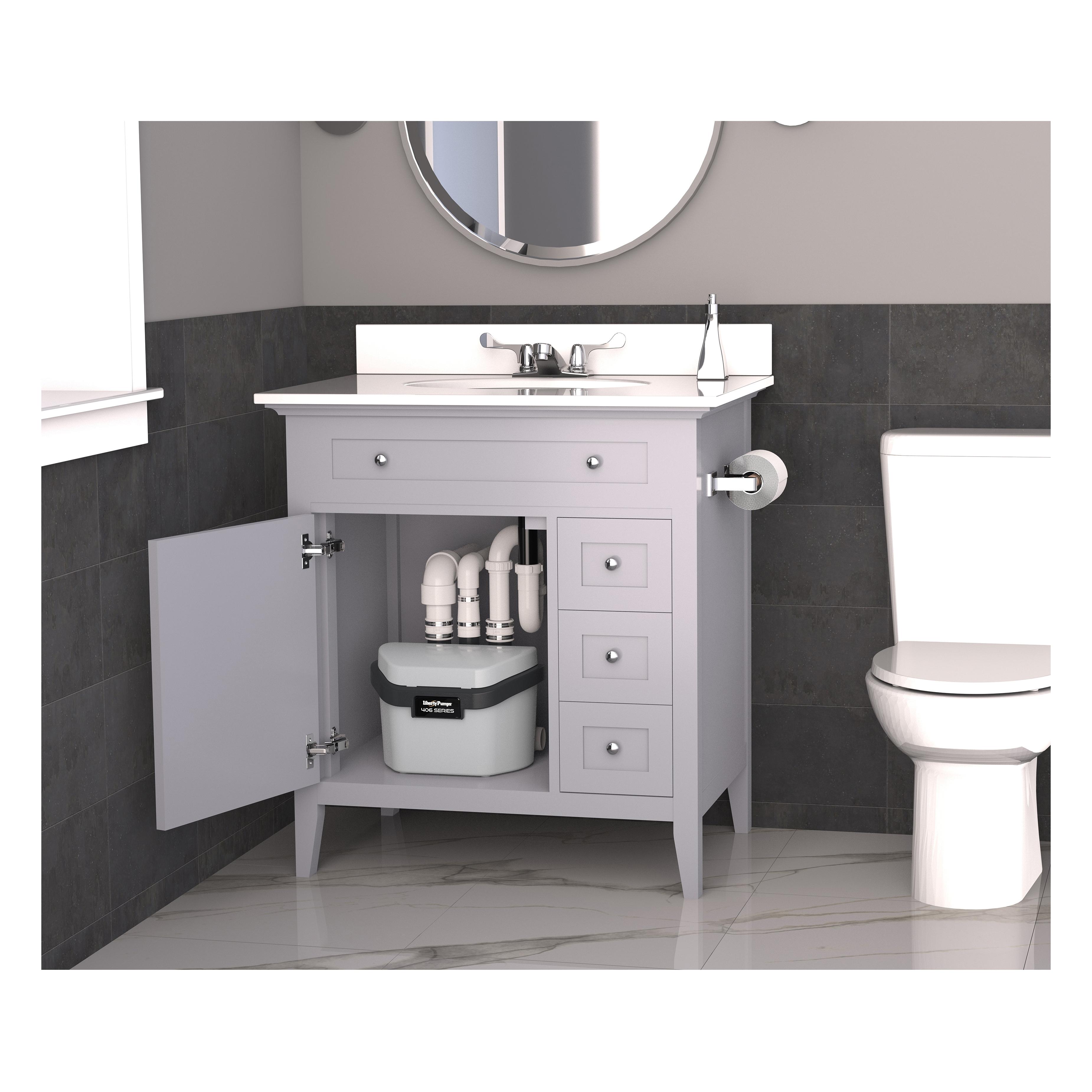

The short profile of Liberty's 406 is specially designed for compact areas and gives you the freedom to install fixtures where gravity drain lines are not available. The 406 pump is ideal for bar sinks, laundry trays, dehumidifiers, utility sinks, and showers.

Features

• 1/8 in solids handling
• Factory pre-assembled, ready to install
• Quiet automatic operation
• Short profile design for compact areas - only 10 in tall (base to top inlet flange)
• Float switch and pump serviceability via access cover
• Wet-end serviceability via removable pump "cartridge" - simple, quarter turn removal
• Rubber gasket for a superior gas-tight seal
• Floor level side inlets with integral check valve and couplings included for convenient plumbing
• Stepped discharge adapter - 1 in, 1-1/4 in, 1-1/2 in with integral check valve
