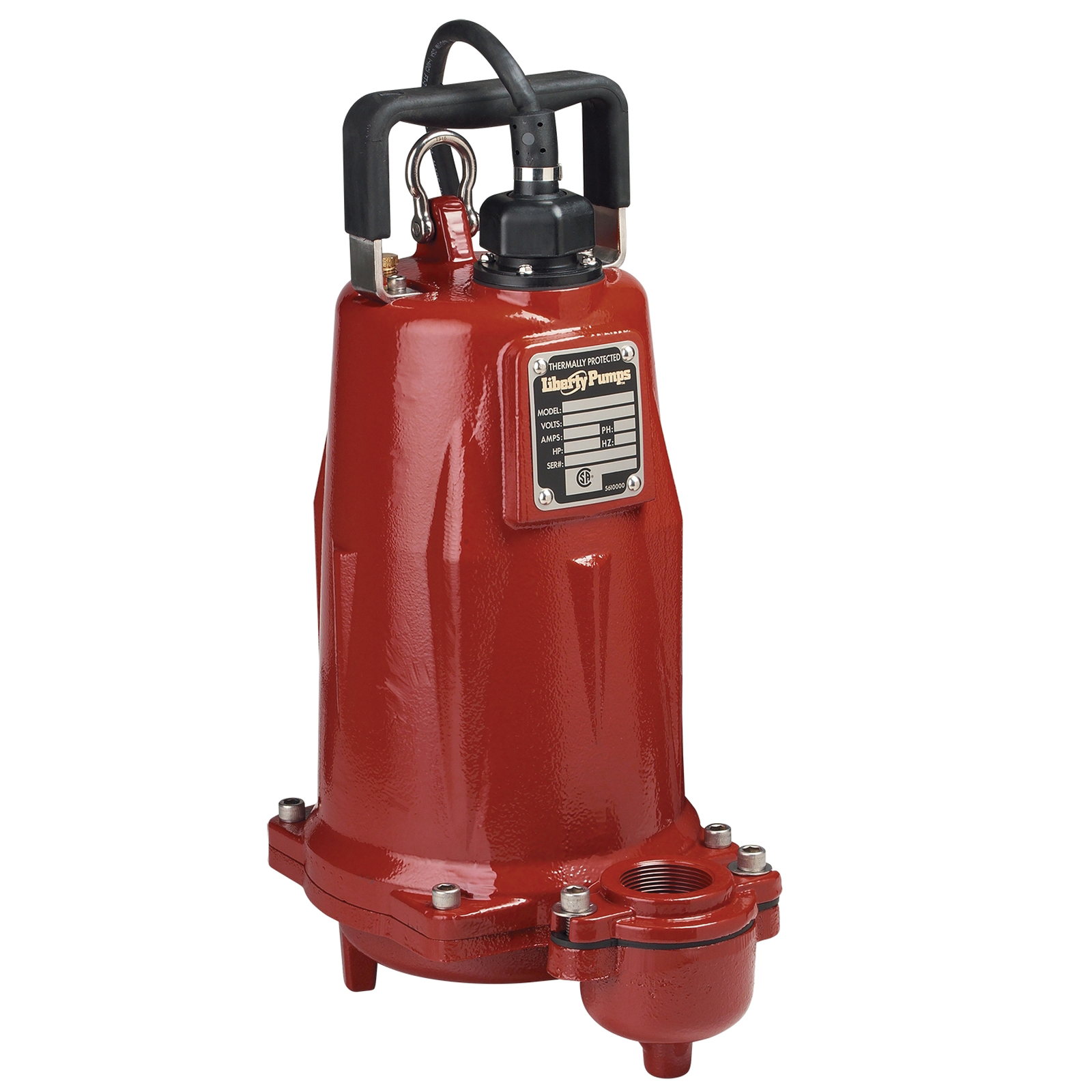

Liberty Pumps® FL100 Series FL102A-2 Submersible Effluent Pump, 208-230 V, 12 A, 60 Hz, 1 hp, Iron

Description

Liberty Pumps® Submersible Effluent Pump, FL100 Series, 208-230 V, 12 A, 60 Hz, 1 hp, 3450 rpm, 1 ph, 1-1/2 in, 2 in Discharge, 25 ft Cord Length, Insulation Class: Class B, Flange Mounting, 104 deg F, Iron Impeller, Iron, Additional Information: Automatic Operation

The FL100-Series by Liberty Pumps covers a wide-range of high-head pump applications. Designed with Liberty Pumps unique one-piece cast iron body and quick-connect cords in 25' standard length. The FL100-Series by Liberty Pumps is a 1 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The pump features a dual-sized threaded discharge of 1-1/2" and 2" for connection to either size pipe. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL100-Series will provide years of reliable performance.

Features

• 3/4" Solids handling
• Heavy cast iron construction
• Semi-open cast iron impeller
• Stainless steel rotor shaft
• Dual shaft seals
• Single float, mercury-free level control
• Additional mounting clamp provided for optional switch mounting to pipe
• Fully adjustable pumping range
• 2" FNPT threaded discharge with 1-1/2" FNPT flange provided
• Quick-connect power cord - 25' length standard
• Available in automatic and manual models
