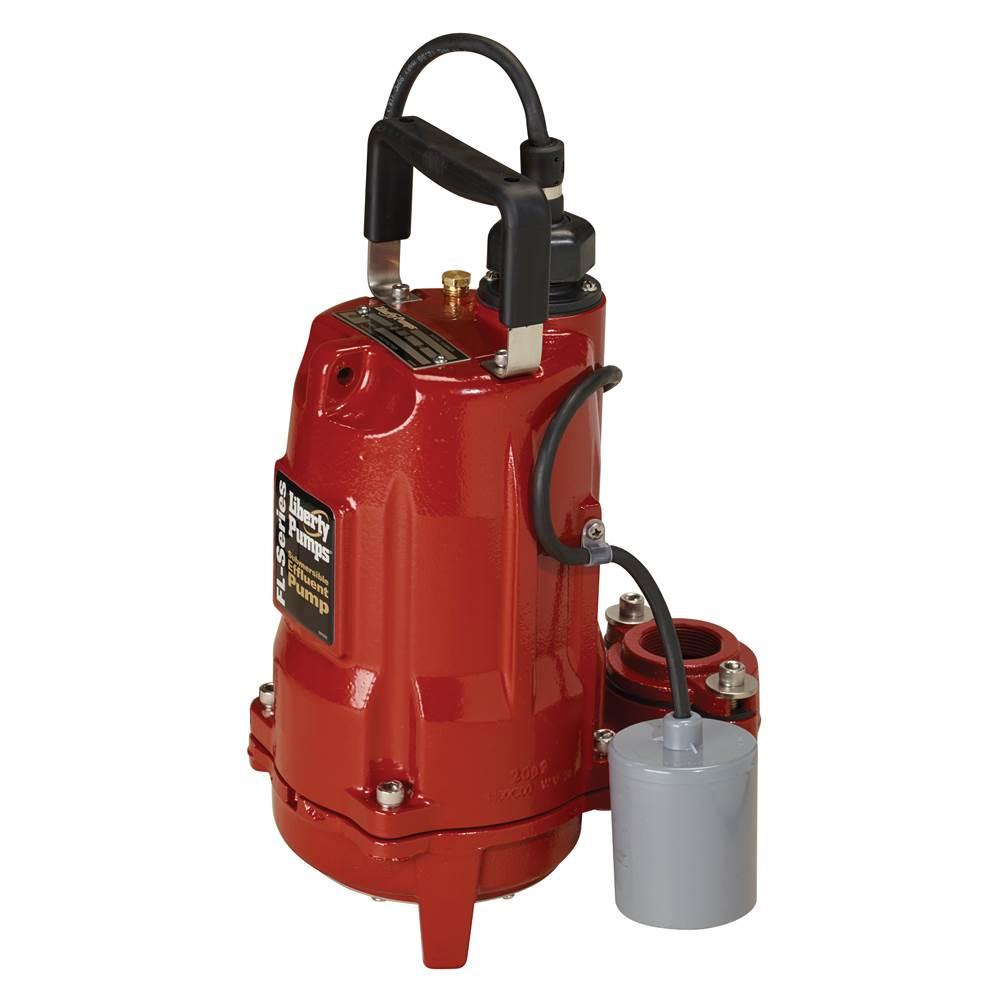

Liberty Pumps® FL50 Series FL51A-2 Submersible Effluent Pump, 115 VAC, 12 A, 60 Hz, 1/2 hp, 92 gpm, Cast Iron

Description

Liberty Pumps® Submersible Effluent Pump, FL50 Series, 115 VAC, 12 A, 60 Hz Frequency, HP Rating: 1/2 hp, 3450 rpm Speed, 92 gpm Flow Rate, 1 ph, 1-1/2 in, 2 in Discharge, 25 ft Cord Length, Maximum Feet of Head: 48 ft, 248 deg F, Cast Iron Impeller, Dimensions: 12.8 in H x 11.2 in W, Cast Iron, Powder-Coated

The FL50 Series by Liberty is a mid range effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head dewatering applications. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL50 will provide years of reliable performance.

Features

• Semi-open impeller permits passage of solids without clogging
• Heavy cast iron construction
• Stainless steel fasteners
• 416 stainless steel rotor shaft
• Permanently lubricated upper and lower ball bearings
• Oil-filled hermetically sealed motor with thermal overload protection
• Unitized carbon and ceramic shaft seal
• 1-1/2 in or 2 in dual-sized discharge flange
• Quick-disconnect power cord in 10 ft length standard
