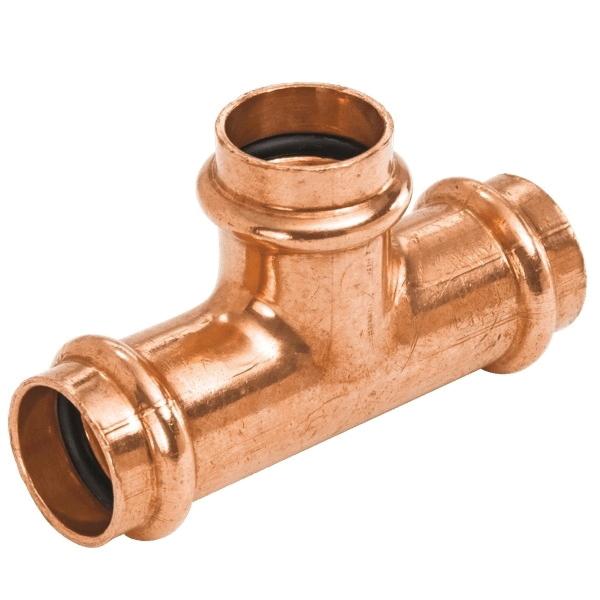

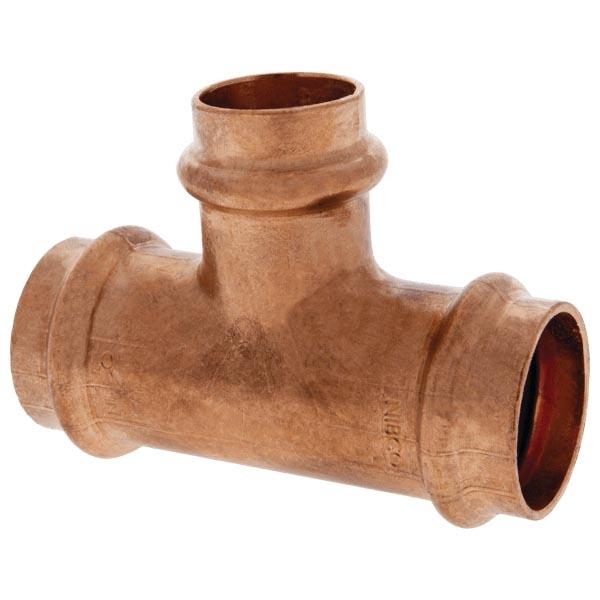

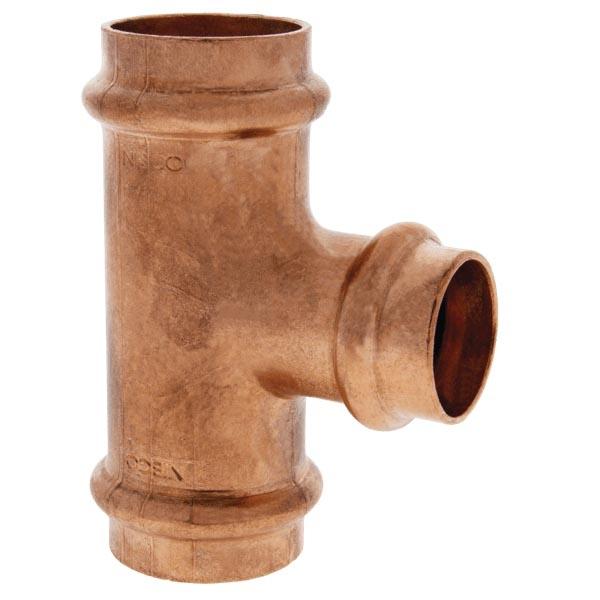

Press System 2-1/2 inch x 2-1/2 inch x 3/4 inch Wrot Copper Tee, PC611, Press x Press x Press

Description

Tee, Nominal Size A: 2-1/2 inch, Nominal Size B: 2-1/2 inch, Nominal Size C: 3/4 inch, Press x Press x Press Connection, Wrot Copper, Pressure Rating: 200 psi CWP, Temperature Rating: -20 to 250 Deg F, For Commercial and Residential Applications, NSF/ANSI 61G, CSA MSE 13 and PS-117, ASTM B75 Standards/Approvals

Features

• The NIBCO® Press System® wrot copper tee features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The tee has press connections and allows for a connection to be made in a continuous pipeline and branch out to a different direction. The press fittings can also be installed underground. The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique “N” witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO valves and fittings – the most specified flow control products in the industry Application: For Commercial and Residential Standards/Approvals: NSF/ANSI 61G, CSA MSE 13 and PS-117, ASTM B75
