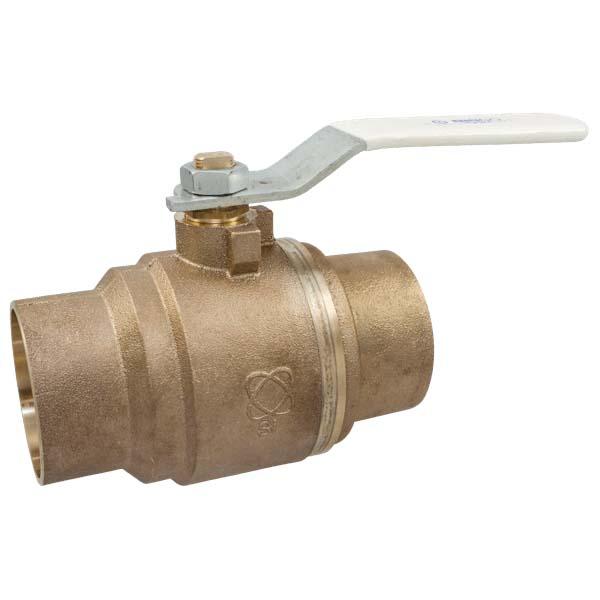

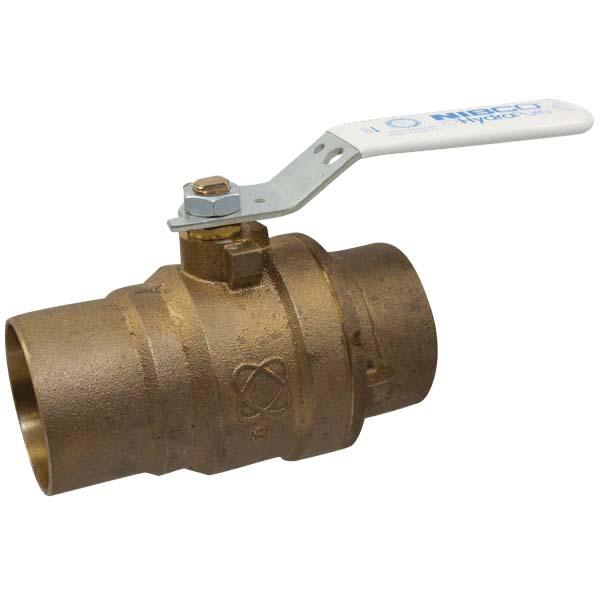

NIBCO® HydraPure® S-580-80-LF Series 1-1/2 inch Solder Lead-Free Silicon Bronze 2-Piece Conventional Port Ball Valve

Description

Ball Valve, Sub Brand: HydraPure®, Series: S-580-80-LF, Type: 2-Piece, Conventional Port, Nominal Size: 1-1/2 inch, Connection Type: Solder, Maximum Pressure Rating: 600 psi, Media: Water, Body Material: Lead-Free Silicon Bronze, Ball Material: Silicon Bronze, Seat: RPTFE, Stem: Silicon Bronze, Packing: PTFE, Actuation/Operator: Lever Handle, Temperature Rating: 300 Deg F, Dimensions: 4.51 inch L x 3.09 inch Top to Inlet Center, Domestic/Import: Domestic, Orifice Size: 1-1/4 inch, Warranty: 5 yr Limited, Standards/Approvals: ASTM B-16, B-283, B-371, NSF/ANSI 61-8, 372, IAPMO IGC-157, Lead Law Compliant, MSS SP-110

Features

No additional feature bullets were supplied for this item.
