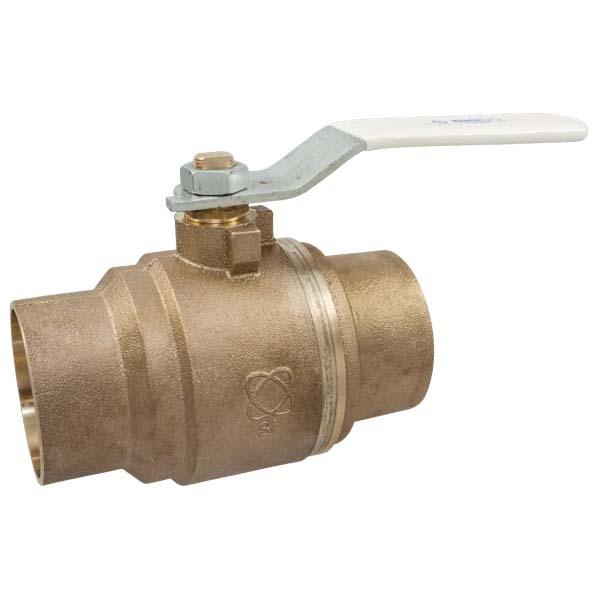

NIBCO® NJ830XE S-580-80-LF Series 2 inch Solder Silicon Bronze 2-Piece Conventional Port Ball Valve

Description

Ball Valve, Series: S-580-80-LF, Type: 2-Piece, Conventional Port, Nominal Size: 2 inch, Connection Type: Solder, Maximum Pressure Rating: 600 psi, Media: Water, Opening Size: 2 inch, Body Material: Silicon Bronze, Ball Material: Silicon Bronze, Seat: PTFE, Seal: PTFE (Reinforced), Stem: Silicon Bronze, Packing: Virgin PTFE, Actuation/Operator: Lever Handle, Temperature Rating: 300 Deg F max, Dimensions: 6.34 inch L x 3.56 inch Center to Top, Applications: For Commercial, Residential, Mechanical and Industrial Applications, Standards/Approvals: Conforms to MSS SP-110, IAPMO IGC-157, NSF/ANSI 61 and 372

Features

• 2-piece body
• Conventional port
• Silicon performance bronze body, ball and stem
• Blowout-proof stem

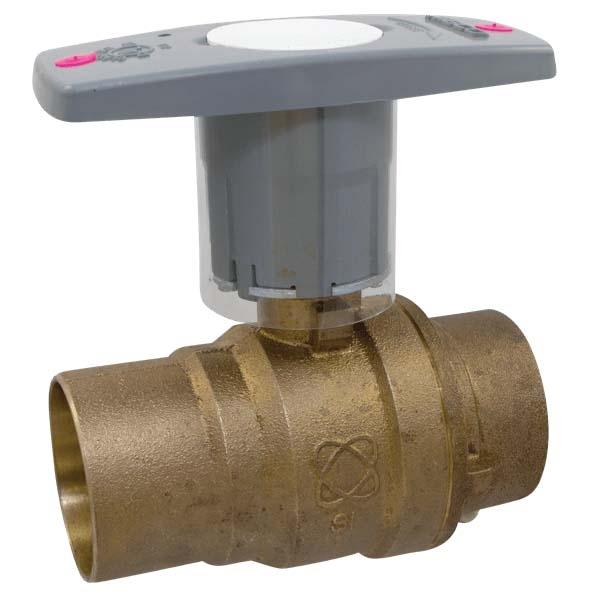

• Standard lever handle, optional NIB-Seal®, locking lever, memory stop, extended lever, round and wing
• Dezincification resistant
