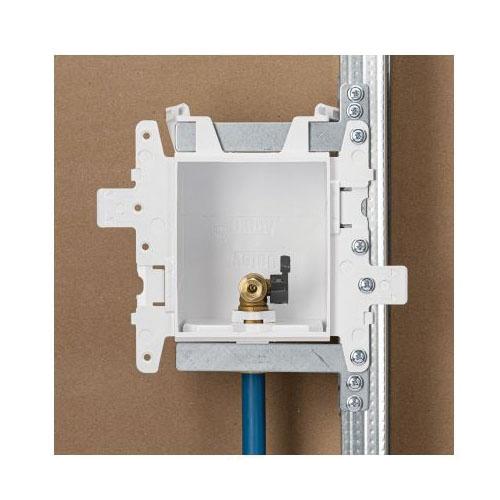

Oatey® MODA 1/2 inch F1960 PEX (Brass) PVC Fire-Rated Ice Maker Supply Box, White

Description

Supply Box, Sub Brand: MODA™, Type: Fire-Rated , Connection Type: F1960 PEX (Brass), Connection Size: 1/4 inch, Material: PVC, No Lead Brass Valve Body, Finish/Color: White, Valve Type: 1/4 Turn, Box Dimensions: 7.98 inch W x 3.63 inch D x 8.46 inch H , Pressure Rating: 150 psi Air, 250 psi Water, Includes: Water Hammer Arrestor, For Use With: Ice Maker, Applications: For Residential or Commercial Applications, Standards/Approvals: ANSI 61, 372, ASME A112.18.1, ASSE 1010, NSF 61 and 372, IAPMO Listed

Features

• MODA® compact-size, fire-rated ice maker outlet box
• Connects to PEX supply line with F1960 cold expansion connection
• Two-piece valve design for easy repair or replacement without damaging drywall
• Advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box
• Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers; valves rated to 150 PSI air and 250 PSI water
• Contains (1) 1/4 in. outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that accommodate on-stud and straddle-stud installation
• Durable PVC box construction stands up to the roughest jobsite conditions
• Listed to Warnock Hersey to meet ASTM E-814 and UL 1479 for both 1-hour and 2-hour wood and steel stud wall installations; listed with Massachusetts Board of Plumbing
• Box dimensions: 8 inch W x 4.85 inch H x 3.38 inch D; Box opening dimensions: 3.82 inch W x 4.367 inch H
• Faceplate dimensions: 6 inch W x 6.45 inch H
