Oatey® MODA® Series 37683 Ice Maker Supply Bo, 1/4 in, PEX, 8 in W Bo, 3.38 in D Bo, 4.85 in H Bo, PVC Box

Description

Oatey® Ice Maker Supply Box, MODA® Series, 1/4 in Connection, PEX Connection, 8 in Box Width, 3.38 in Box Depth, 4.85 in Box Height, PVC Box, White Box, 6 in Faceplate Width, 6.45 in Faceplate Height, Brass Valve

The MODA® Supply Box System is a compact, universal single-box platform that combines extensive mounting configuration options with innovative engineering, simplifying outlet box installation for plumbing contractors. One universal faceplate is compatible with all box types, and boxes easily snap to one another with common brackets. Available in a variety of configurations in standard and fire-rated options, MODA Ice Maker Supply Boxes include one 1/4 in. outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that allow for on-stud and straddle-stud installations. Oatey products have earned the trust of plumbing professionals for over 100 years.

Features

• Connects to PEX supply line with F1960 cold expansion connection
• MODA® compact-size ice maker outlet box
• Infinite configuration options for easy, flexible installation

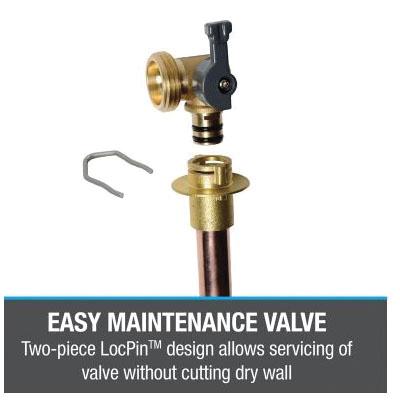

• Two-piece valve design for easy repair or replacement without damaging drywall
• Advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box

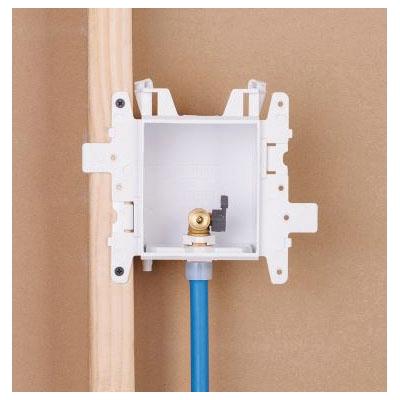

• Contains (1) 1/4 in. outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that accommodate on-stud and straddle-stud installation
• Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers; valves rated to 150 PSI air and 250 PSI water
• Durable PVC box construction stands up to the roughest jobsite conditions
• Universal faceplate and brackets compatible with all MODA boxes
• Box dimensions: 8 in. W x 4.85 in. H x 3.38 in. D; box opening dimensions: 3.82 in. W x 4.367 in. H
• Faceplate dimensions: 6 in. W x 6.45 in. H
