Oatey® MODA™ 37741 3/8 inch Copper PVC Standard Lavatory Box, White; 12/Case

Description

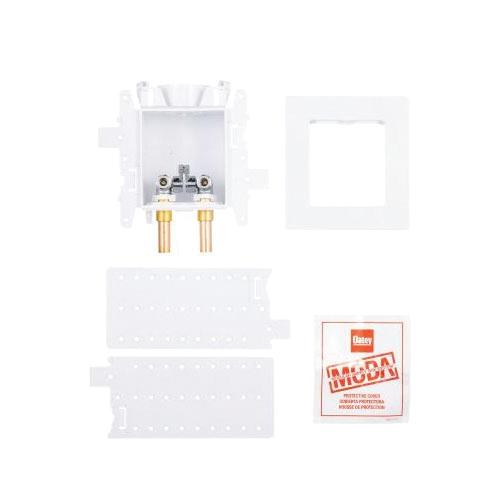

Lavatory Box, Sub Brand: MODA™, Type: Standard, Connection Type: Copper, Connection Size: 3/8 inch, Material: PVC, Finish/Color: White, Valve Type: 1/4 Turn, Width: 8 inch, Depth: 3.38 inch, Height: 4.85 inch, Temperature Rating: 250 deg F, Includes: (2) Side Brackets, Faceplate, Faceplate Insert and (2) Sticker Cover, Standards/Approvals: ANSI 61 and 372, ASME A112.18.1

Features

• Using a single box platform provides significant convenience to installers
• One universal faceplate is compatible with all box types
• All boxes can snap to one another and common brackets can be used on any Moda™ supply box
• Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations
• Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
• Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
• Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
• Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
• Two piece valve design makes valve replacement easy to repair, without damaging drywall
• Valves rated to 150 psi air and 250 psi water
