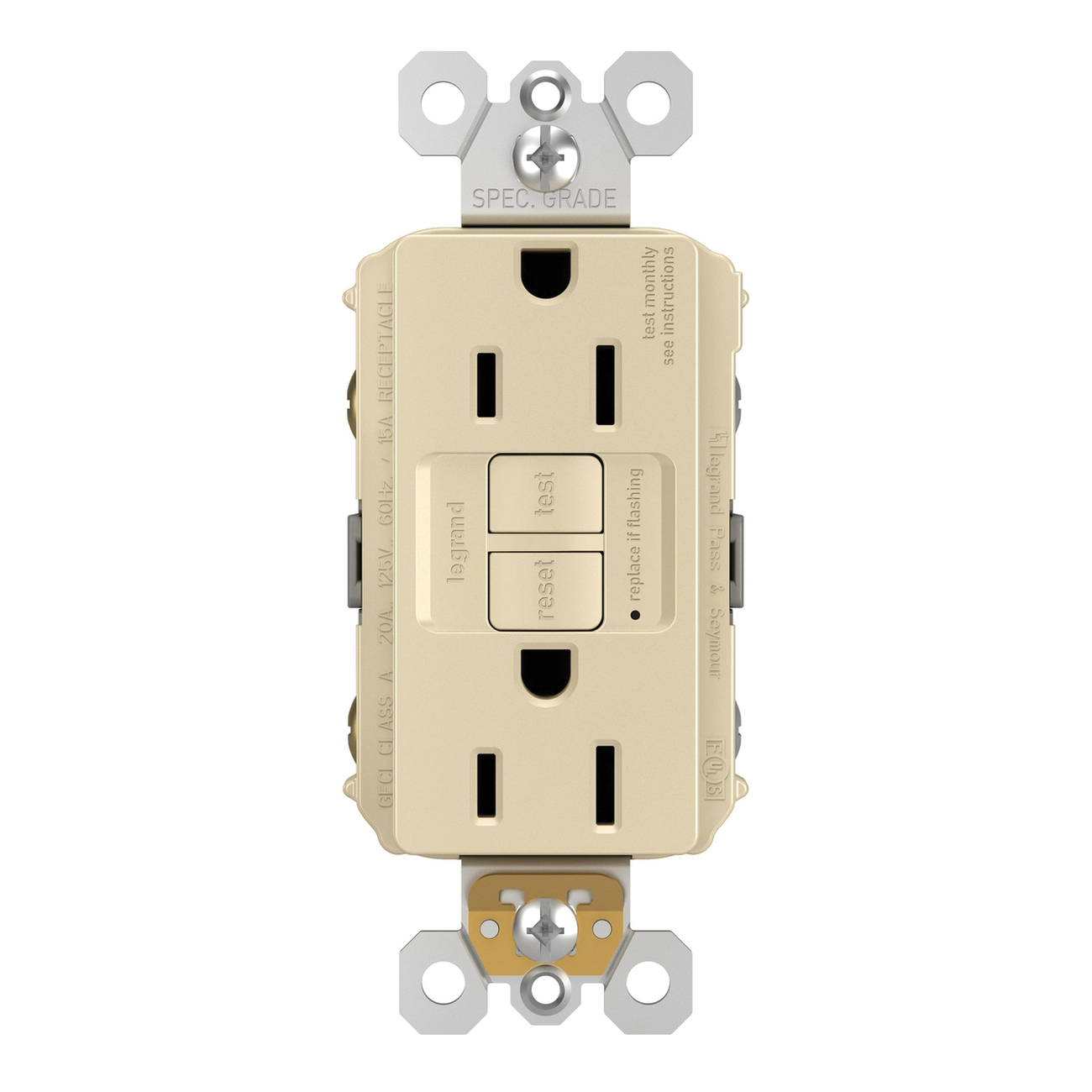

Pass & Seymour 1597 Series 125V 15A Self-Test Duplex Nylon Specification Grade GFCI Receptacle, Ivory

Description

GFCI Receptacle, Sub Brand: Trademaster®, Series: 1597, Type: Specification-Grade, Self-Test, Duplex, Ampere Rating: 15A, Voltage Rating: 125V, Wire Size: #14 - 10 AWG Stranded or Solid, Temperature Rating: -35 to 66 deg C, Material: Nylon, Color: Ivory, Dielectric Strength: 1500V, Face Material: Nylon, Flat Head Mounting Screw Material: Zinc-Plated Steel, Trip Threshold: 5 +/- 1m, Wiring Type: Back and Side, Trip Time: 0.25 sec, NEMA Rating: 5-15R, Environmental Conditions: Flammability Meets UL94 Requirements, V2 Rated, Frequency: 60 Hz, Contacts: 0.03 in Brass (0.8), Mounting Straps: Galvanized Steel, Terminal Screws: Nickel-Plated Steel #8 - 32, Hex Head Grounding Screw: Steel (Green), Test/Reset Buttons: Nylon, Auto-Ground Clip: Brass Alloy, Nightlight Lens: Lexan®, Tamper-Resistant Shutter: Thermoplastic

Features

• Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
• Auto-ground clip assures a positive ground to metal box
• Feed-thru wiring configuration allows GFCI to protect downstream receptacles
• Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
• Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3kA/6kV voltage surge test cycles
• Trip indicator light (red LED)

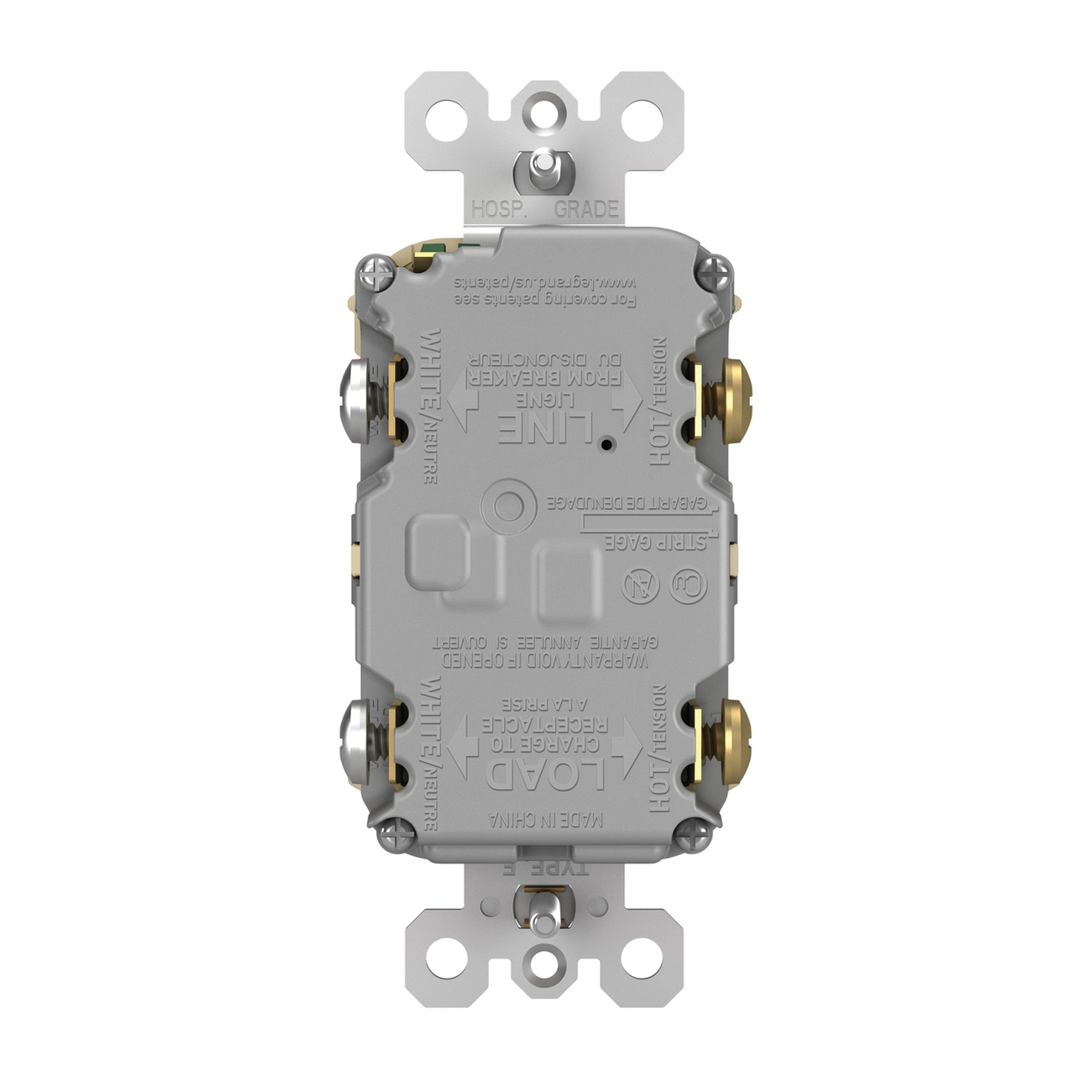

• Side or internal screw-pressure-plate back wire with #10-14 AWG solid or stranded copper wire
• Two back-wire holes per terminal
• Ground screw has back-wire clamp for easy installation
• 10kA short circuit rating
• Mounting screws are shipped captive in the device and wall plate for easier installation
• High-impact-resistant thermoplastic construction
• Extra-long strap
• Button colors match the device face
• Dual-direction test and reset buttons
• Class A rated GFCI
• Supplied with matching TP wall plate
• 5 +/- 1m trip threshold
• 0.025 sec trip time, nominal per UL Standard
• 20A feed-thru capacity
