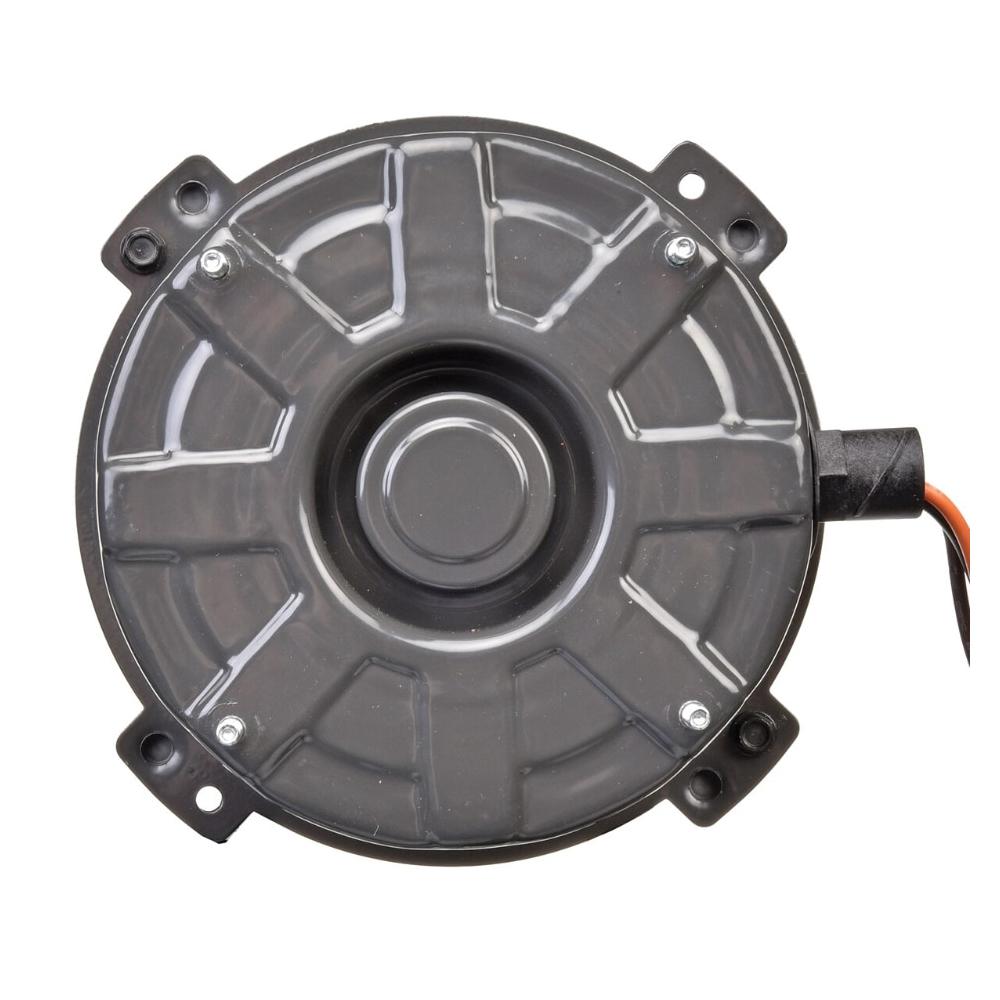

Rheem® Protech™ 51-104691-06 208/230VAC 0.75A 1/8 HP SPH Condenser Motor
Rheem®HVAC Motors

Rheem® Protech™ 51-104691-06 208/230VAC 0.75A 1/8 HP SPH Condenser Motor

Mfg Part #: 51-104691-06

Part #: RH5110469106

Sold As: 1/Each

CPN: Add CPN

Sign in for Availability

Sign in for price

1
Email counterRequest quote

Specifications

ManufacturerRheem Manufacturing
BrandRheem®
Mfg Part #51-104691-06
Part #RH5110469106
Sold AsEach
Package Qty0
Min Order Qty1
Weight7.0 lb

Description

Condenser Motor, Sub Brand: Protech™, Frame: NEMA 42, Voltage Rating: 208/230VAC, Ampere Rating: 0.75A, Horse Power: 1/8 HP, Hertz: 60 Hz, Phase: 1, Mounting: Thru-Bolt, Rotation: Counterclockwise, Number of Speed: 1, Shaft Diameter: 1/2 inch, Shaft Length: 2-1/4 inch, Overall Motor Length: 6-3/8 inch, Bearing Type: Ball, Capacitor: 5 uF, 370V, No Load RPM: 1075 rpm, Drive Type: Direct, Keyed/Flat Shaft Length: 1 inch, Motor Body Diameter: 4-29/32 inch, Overall Length: 4-3/32 inch, Duty: Continuous, Surge Protection Devices (SPD): 1, Standards/Approvals: Prop65 Warning: Cancer and Reproductive Harm @www.P65Warnings.ca.gov

Features

No additional feature bullets were supplied for this item.

Resources

No product resources were supplied for this item.
