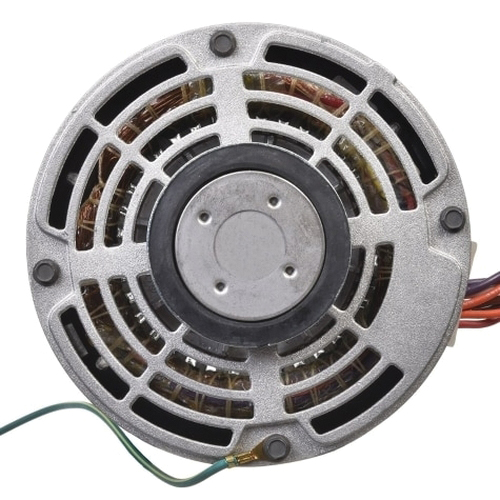

Rheem® RESCUE® 5471 Blower Motor, 1/5 to 3/4 hp, 208-230 V, 60 Hz, 1 ph -Phase, 48 Frame, 1075 rpm Speed

Description

Rheem® RESCUE® Blower Motor, 1/5 to 3/4 hp, 208-230 V, 4.62/4.2 A, 60 Hz, 1 ph, 1075 rpm, 4 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Ball Bearing, Resilient Ring, Shell-Band, Shell-Screw, Thru-Bolt Mounting

This line of RESCUE® permanent replacement motors consists of blower motors for your gas furnace or air handler unit. These furnace motors ensure contractors always have the right blower motor on hand to get the job done. RESCUE furnace motors are easily installed and replace a variety of different horsepower applications. This replacement blower motor eliminates the need for temporary substitutions, extra drive time back to the wholesaler and emergency openings in the evening.

Features

• Designed for use with 370V HVAC capacitor
• Class B insulation

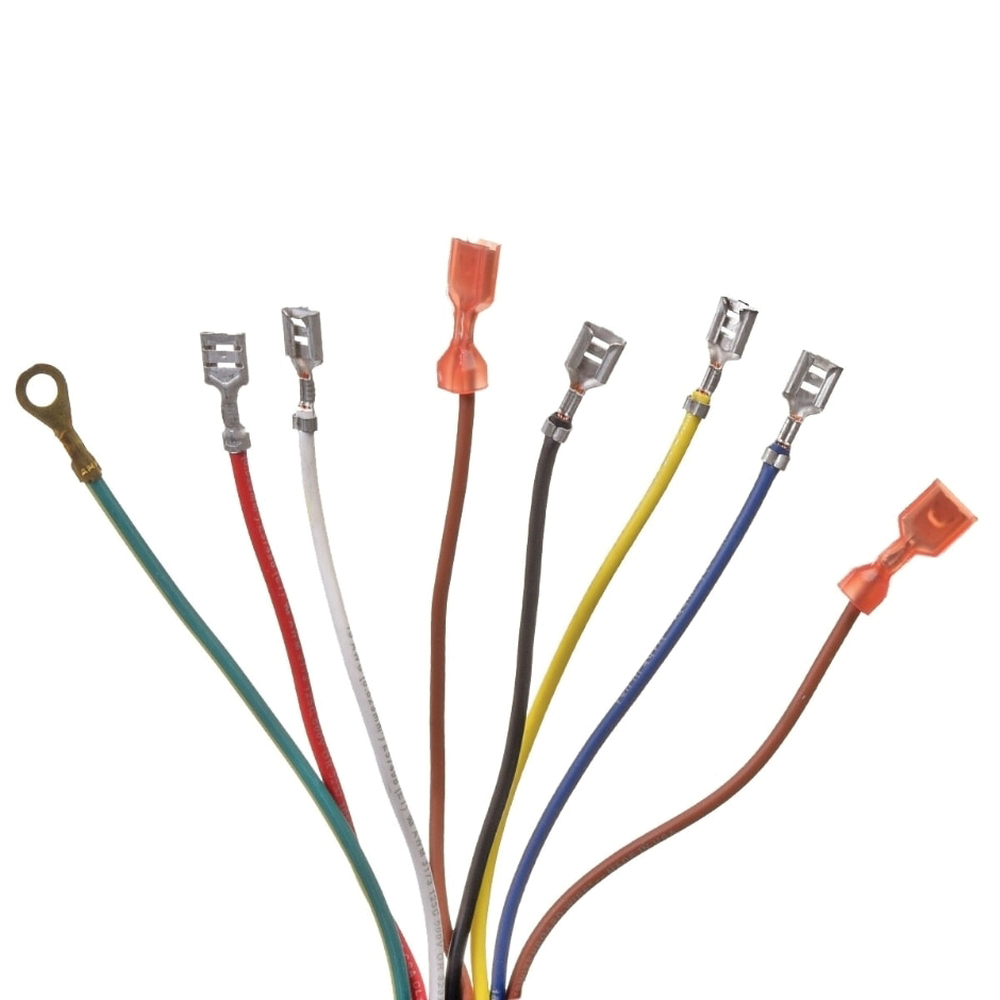

• 24" leads
• Continuous duty, air over
• Bearings have all angle thrust system
• Reversible rotation furnace blower motor
• Automatic reset thermal overload protection
• All angle mount
• Connection and capacitor information furnished in nameplate
