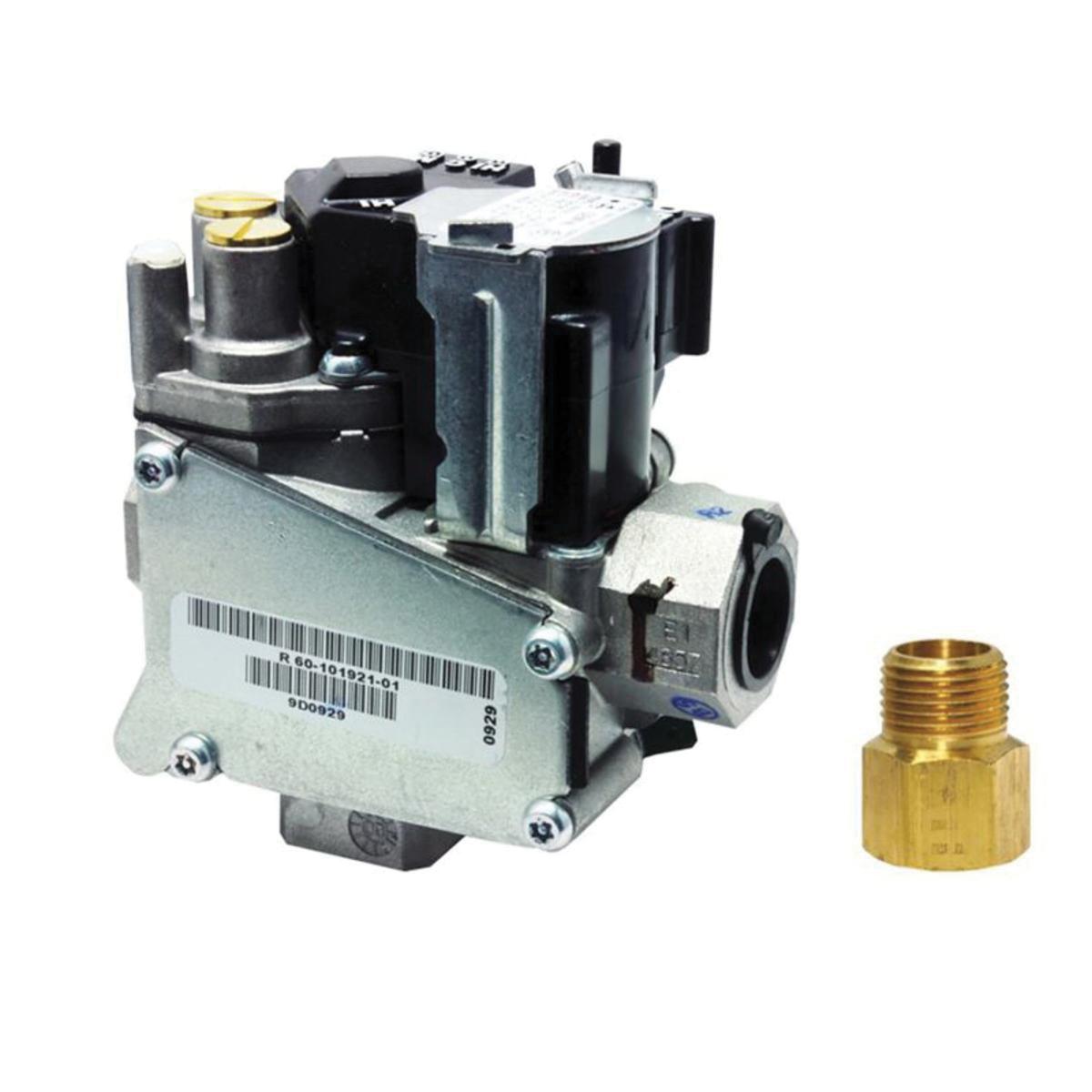

WHITE-RODGERS™ 36G Standing Pilot Two-Stage Liquid Propane/Natural Gas Gas Valve, 1/2 inch x 1/2 inch, 24VAC

Description

Gas Valve, 2-Stage, Standing Pilot, 1/2 inch Inlet, 1/2 inch Outlet, 24VAC Coil Voltage, BTUH Capacity: 226800 Liquid Propane, 140000 Natural, Liquid Propane/Natural Gas, Current Rating: 0.3A Single Stage, 0.43A Two Stage, Frequency Rating: 50/60 Hz, Pressure Rating: 1/2 psi, Upright or Vertical Mount, Inlet Pressure Tap: Yes, LP Conversion Kit: Yes, Reducer Bushing Kit: Yes, 1/4 inch Compression Connection, Pressure Regulator Setpoint: 3.5 inch, 1 Stages, Replaces: 36G55-521, CSA Certified Standards/Approvals

Features

• Inlet and outlet screens
• Quiet redundant
• Built-in pressure tap
• 0.25 inch quick-connect terminals
