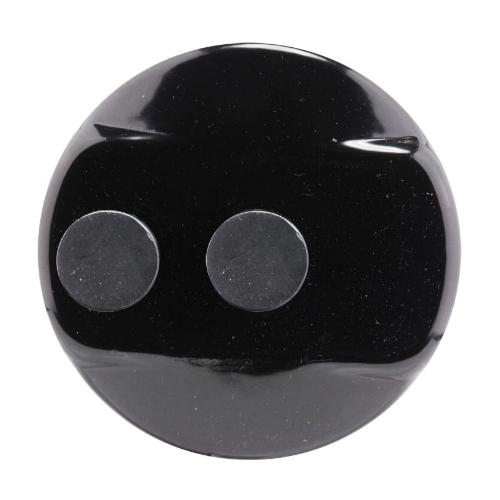

Rheem® VPA Series 98 oz 3/4 inch Steel Suction Line Accumulator

Description

Suction Line Accumulator, Series: VPA, Tank Capacity: 98 oz, Volume: 2.41L, Connection Size: 3/4 inch, Vessel Size: 8-5/16 inch, Refrigerant Type: CFC, HCFC and HFC Including R-22, R-134a, R-404A, R-407C, R-410A, R-500, R-502 and R-507, Material: Steel, Dimensions: 5 inch OD x 9-5/8 inch L, Standards/Approvals: UL, cULus Listed

Features

• Solid copper connections (except where noted in the following tables)
• U-tube design for maximum flow of refrigerant and minimum oil entrapment
• Inlet flow deflector guides refrigerant toward wall for smooth tangential flow and gradual expansion
• Baffled U-tube entrance is positioned behind the inlet flow deflector to prevent unwanted liquid refrigerant from entering and damaging compressor at all rated conditions
• Metering orifice matched to system capacity which optimizes liquid refrigerant and oil flow return back to compressor at all rated conditions
• Protective screen and orifice assembly on U-tube protects against contaminants affecting metering function
• Minimum pressure drop and maximum refrigerant flow
