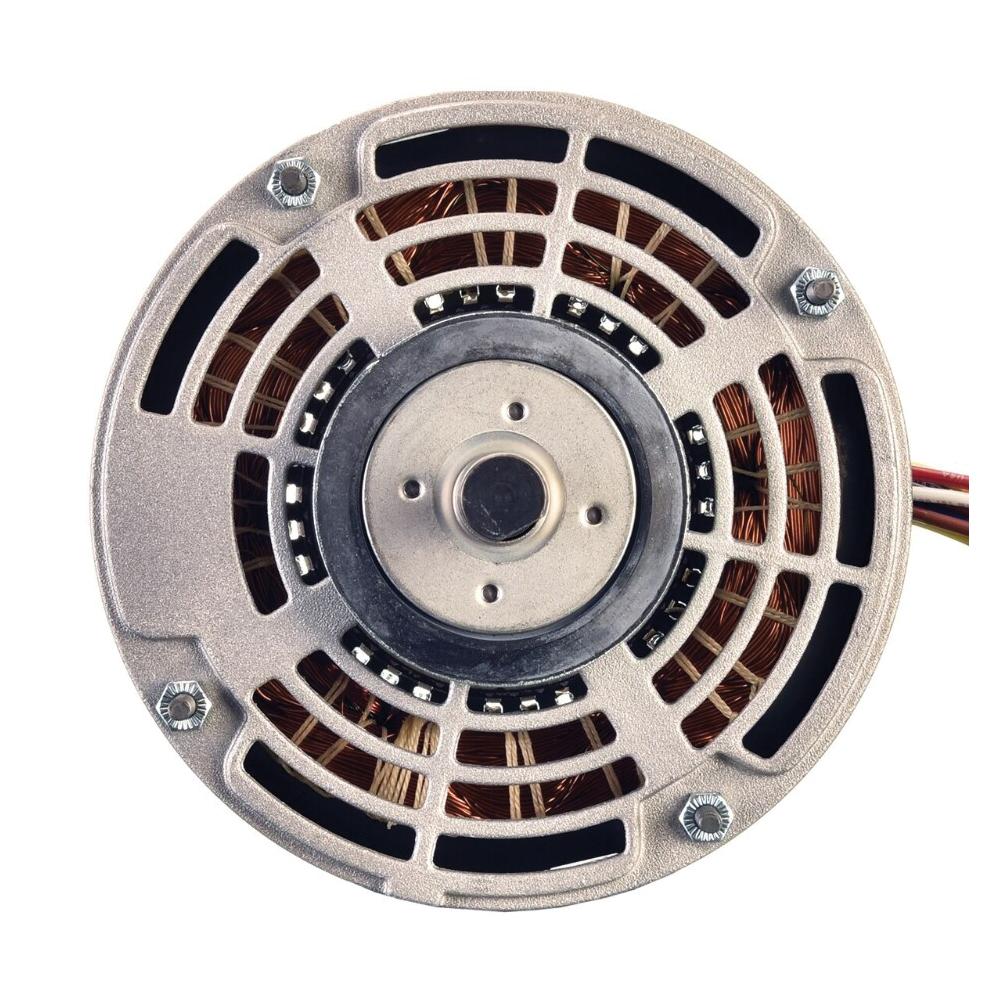

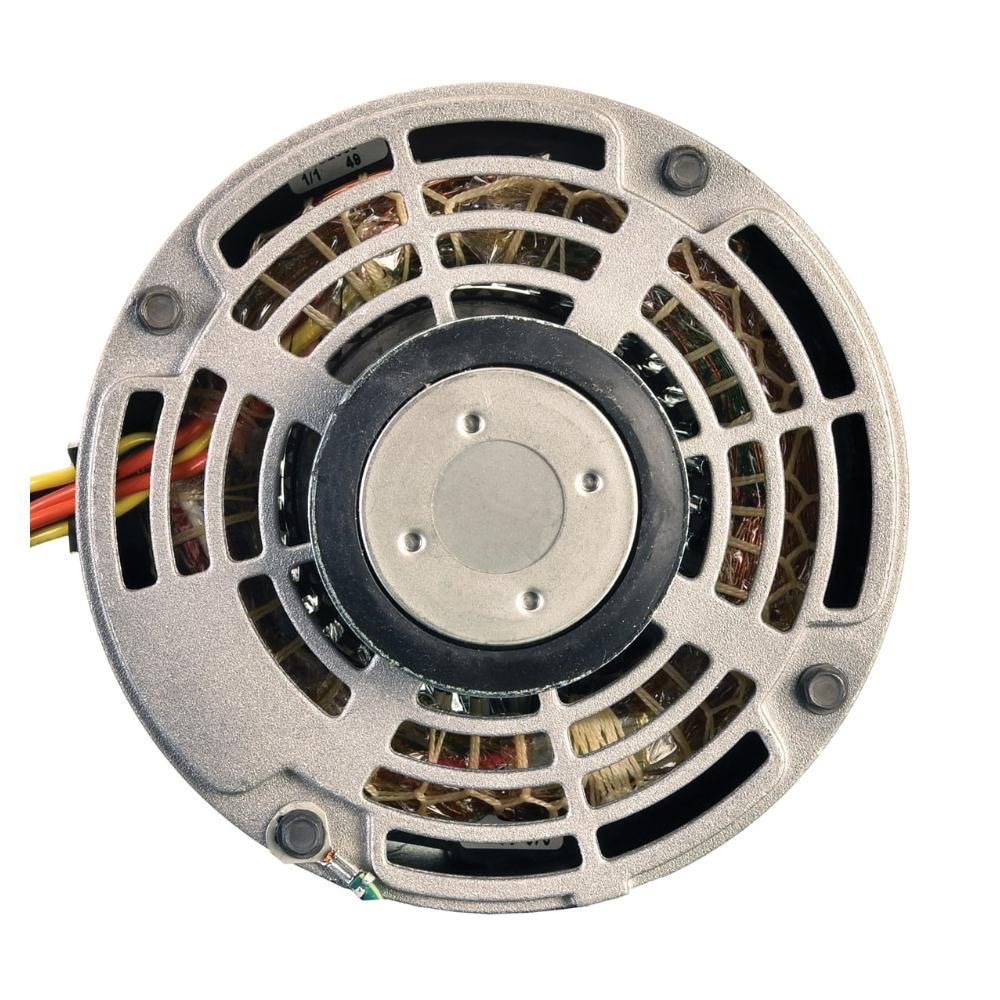

Rheem® W51-14BJA3-02 Universal Blower Motor, 1/4 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed

Description

Rheem® Universal Blower Motor, 1/4 hp, 208/230 V, 1.6 A, 60 Hz, 1 ph Phase, 1075 rpm, 3 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Sleeve Bearing, Thru-Bolt, Shell-Band Mounting, 5-5/8 in Overall Width, Additional Information: Direct Drive, Reversible Rotation, Keyed/Flat Shaft, 10/370 uF/V Run Capacitor, 10-3/8 in L Dimensions

The TrueLine™ PSC blower motors are designed to withstand high humidity environments, offering corrosion resistance for extended lifespan. They feature unique rotor treatment and varnish dipped windings, making them ideal for both residential and light commercial HVAC applications. These indoor blower motors come equipped with three and four speeds, along with reversible rotation capabilities.

Features

• Thru-bolt or belly band mounting
• Self-aligning bearing
• Reversible
• 48 frame
• 1075/950/850 three speed
• 1/2" shaft diameter
• 5" shaft length
