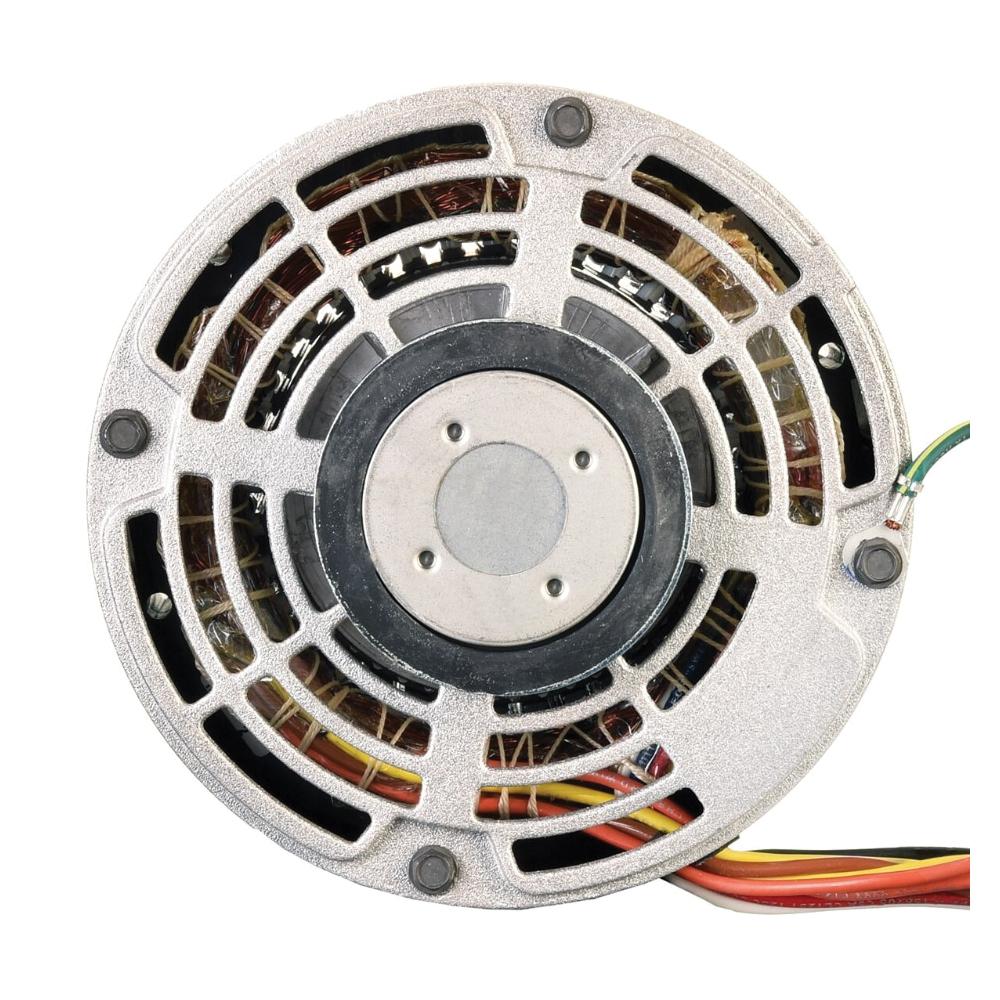

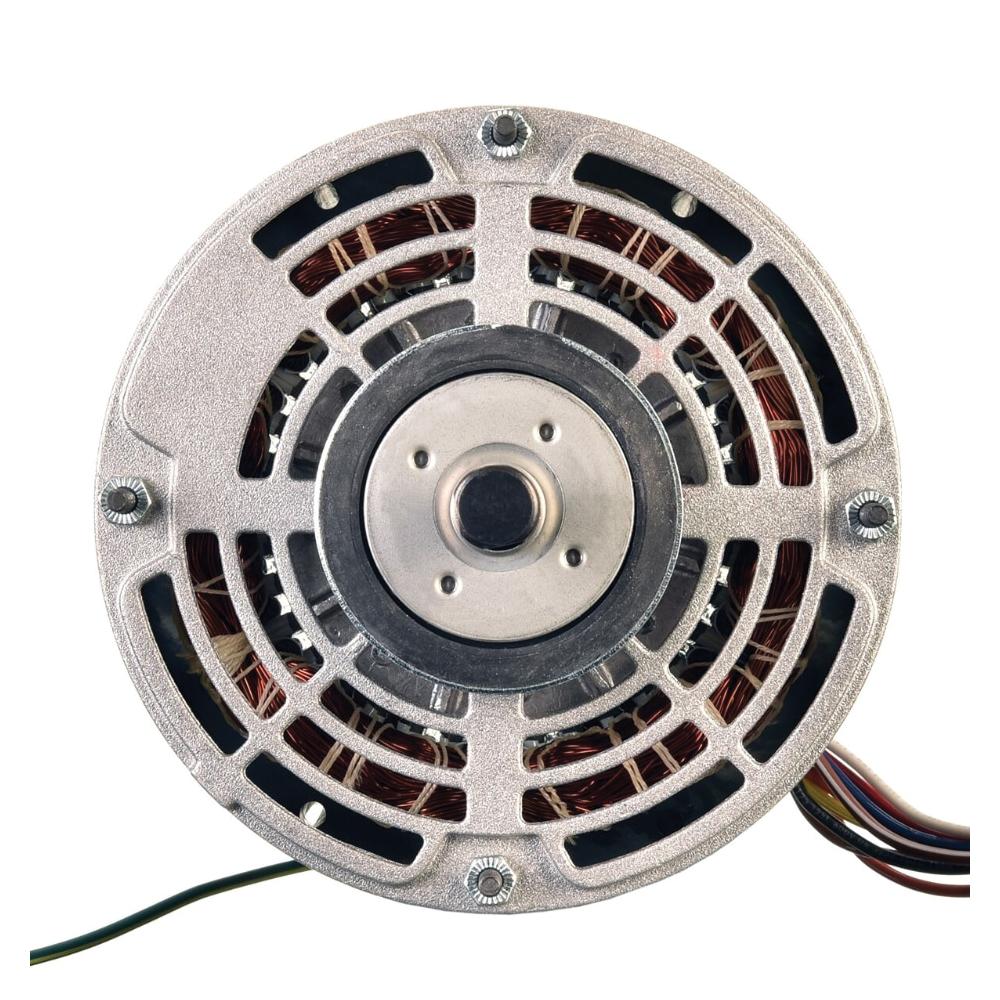

Rheem® W51-34BJA3-02 Universal Blower Motor, 3/4 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed

Description

Rheem® Universal Blower Motor, 3/4 hp, 208/230 V, 4 A, 60 Hz, 1 ph Phase, 1075 rpm, 3 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Sleeve Bearing, Thru-Bolt, Shell-Band Mounting, 5-5/8 in Overall Width, Additional Information: Direct Drive, Reversible Rotation, Keyed/Flat Shaft, 15/370 uF/V Run Capacitor, 11-5/8 in L Dimensions

The TrueLine™ PSC blower motors are built to endure high humidity environments, providing corrosion resistance for a longer lifespan. They include special rotor treatment and windings dipped in varnish, making them well-suited for residential and light commercial HVAC use. These indoor blower motors feature three and four speeds and are capable of reversible rotation. Blower motors are integral to the operation and performance of HVAC systems, contributing to comfort, air quality, and energy efficiency.

Features

• Thru-bolt or belly band mounting
• Self-aligning bearing
• Reversible
• 48 frame
• 1075/950/850 three speed
• 1/2" shaft diameter
• 5" shaft length

Resources

No product resources were supplied for this item.
