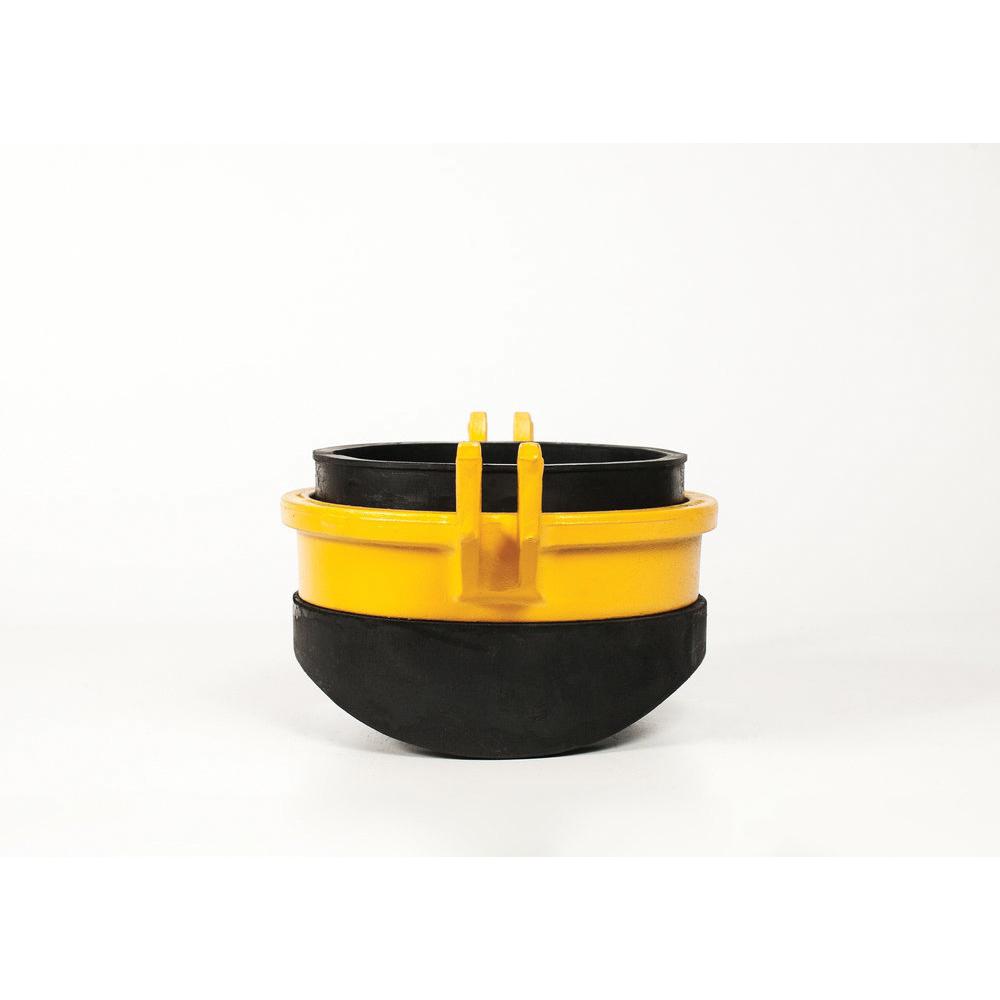

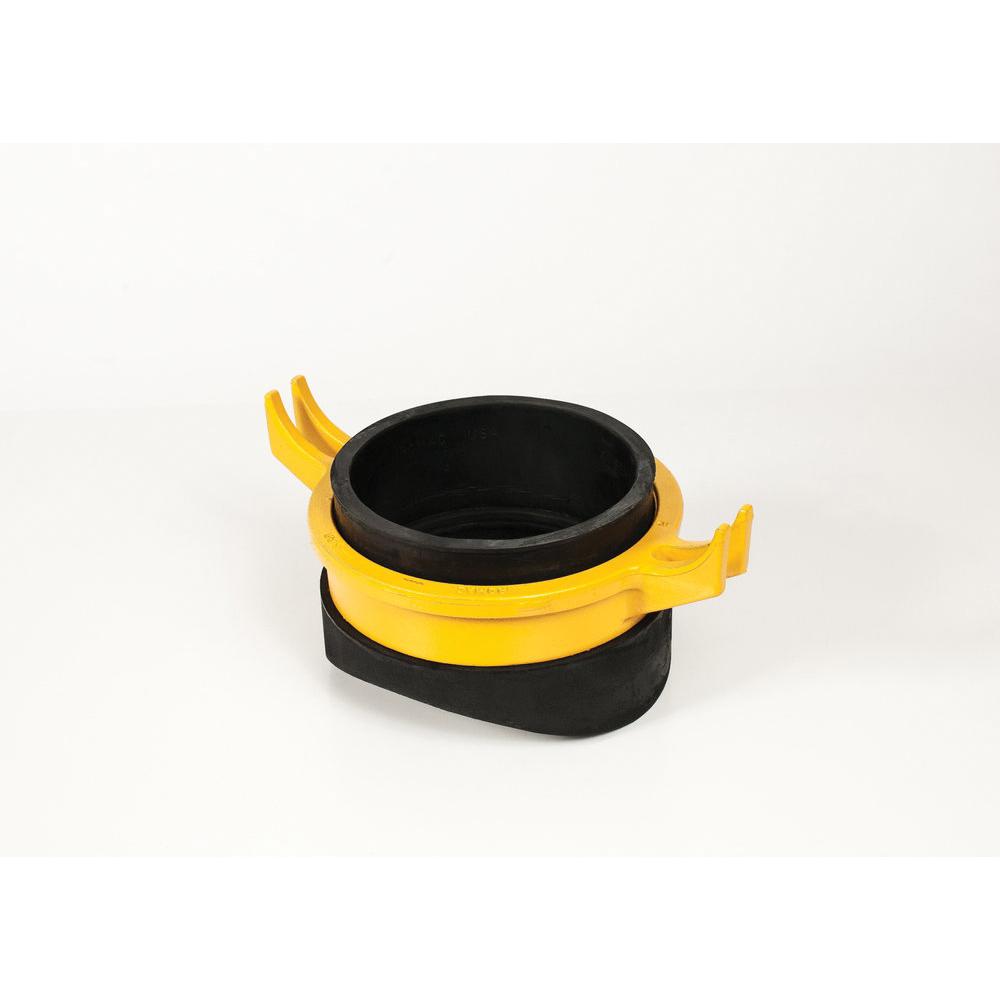

ROMAC INDUSTRIES Style CB Sewer Saddle Ductile iron, 8 to 12 inch x 6 inch

Description

Sewer Saddle, Universal Branch, Pipe Diameter Range: 14.40 to 25.80 inch, Ductile iron Construction, 8 to 12 inch Pipe, 6 inch Thread Size, Strap Length

Features

• Superior Strap: Strong 304 stainless steel band GMAW & GTAW welded to roll threaded 304 stainless bolts adjusts over a wide range. Clamping force is well distributed by 3-1 /2 inch width
• Reliability: Continuous rubber connection between rim and branch eliminates potential leak spots. Saddles have been tested to pressures well in excess of typical service test requirements
• Inventory Reduction: Unique gaskets fit wide range of diameters
• Flexibility: Gasket allows considerable deflection due to earth movement, while large sealing surface and wide band strongly resist displacement
• Ease of installation: Saddle can be installed by unskilled labor, using a socket or open end wrench. Built-in stop prevents blockages due to inadvertent insertion of branch into main
