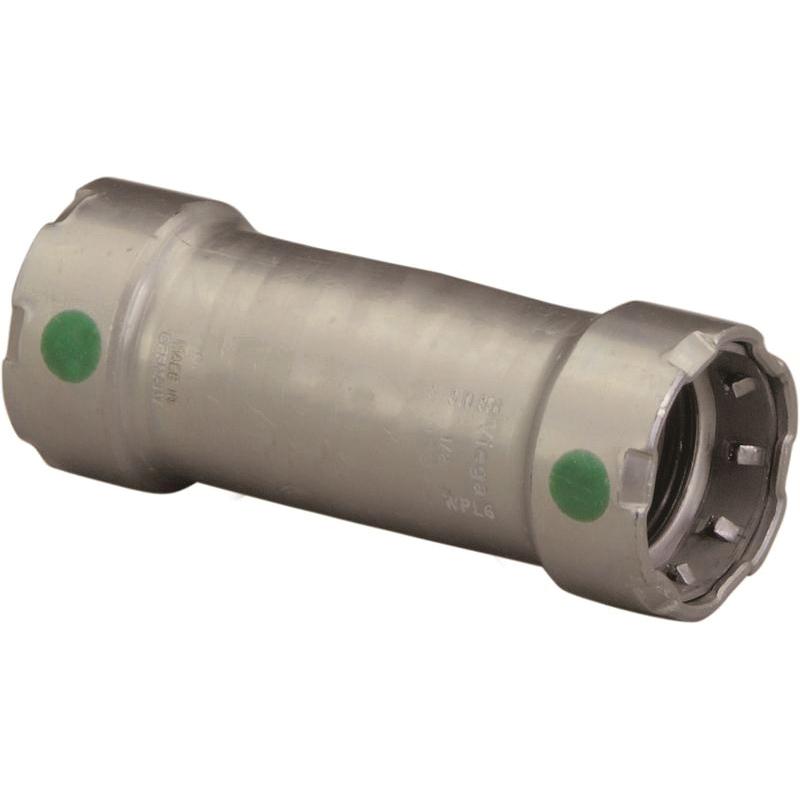

Viega MegaPress 4815.3 1 inch x 1 inch Extended Coupling No Stop, Press x Press, Lead Free, Zinc-Nickel Coated Carbon Steel

Description

Coupling, Model: 4815.3, Sub Brand: MegaPress , Type: Extended With No Stop, Size: 1 inch x 1 inch, Connection Type: Press x Press, Components: HNBR sealing elements, 420 stainless steel grip ring, 304 stainless steel separator ring for 1/2 inch to 2 inch fittings, Graphite separator ring for 2-1/2 inch to 4 inch fittings, Material: Zinc-Nickel Coated Carbon Steel, Temperature Range: -40 Deg F to 180 Deg F, Max Operating Pressure: 200 psi, Standards/Approvals: CAN/CSA-B149.1, IAPMO/UPC LC4, ANSI LC4/CSA 6.32, ICC-ES PMG1036, ABS: American Bureau of Shipping, Lloyd’s Register, NFPA 54/Z223, NFPA 58, Applications: Natural Gas, Lubricants/oils, Industrial Gases, Compressed Air, Fuel oil, Vacuum, Class

Strict deadlines and tight budgets demand efficient pipe connections. With Viega MegaPress press technology, you can make flameless connections on 1/2 inch to 4 inch gas pipe in 16 seconds or less. MegaPress saves you time and labor, so you can focus on the bigger picture.

Features

• Smart Connect technology
• For use with Sch.5 to Sch.40 carbon steel pipe
• Carbon steel
• Press connection
