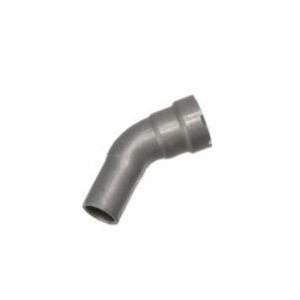

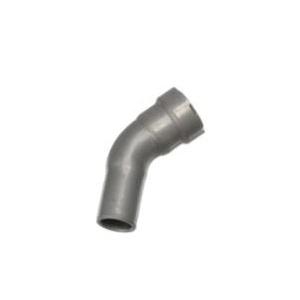

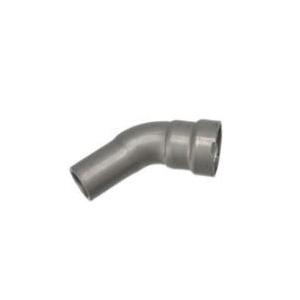

Viega MegaPressG 6626.1 2 inch x 2 inch 45 Degree Street Elbow, Press x FTG, Lead Free, Zinc-Nickel Coated Carbon Steel

Description

Elbow, Model: 6626.1, Sub Brand: MegaPressG , Type: Street, Bend Angle: 45 Degree, Size: 2 inch x 2 inch, Connection Type: Press x FTG, Components: HNBR sealing elements, 420 stainless steel grip ring, 304 stainless steel separator ring for 1/2 inch to 2 inch fittings, Graphite separator ring for 2-1/2 inch to 4 inch fittings, Material: Zinc-Nickel Coated Carbon Steel, Temperature Range: -40 Deg F to 180 Deg F, Max Operating Pressure: 200 psi, Standards/Approvals: CAN/CSA-B149.1, IAPMO/UPC LC4, ANSI LC4/CSA 6.32, ICC-ES PMG1036, ABS: American Bureau of Shipping, Lloyd’s Register, NFPA 54/Z223, NFPA 58, Applications: Natural Gas, Lubricants/oils, Industrial Gases, Compressed Air, Fuel oil, Vacuum, Class

Strict deadlines and tight budgets demand efficient pipe connections. With Viega MegaPressG press technology, you can make flameless connections on 1/2 inch to 4 inch gas pipe in 16 seconds or less. MegaPressG saves you time and labor, so you can focus on the bigger picture.

Features

• Smart Connect technology
• For use with Sch.5 to Sch.40 carbon steel pipe
• Carbon steel
• Press connection, street
