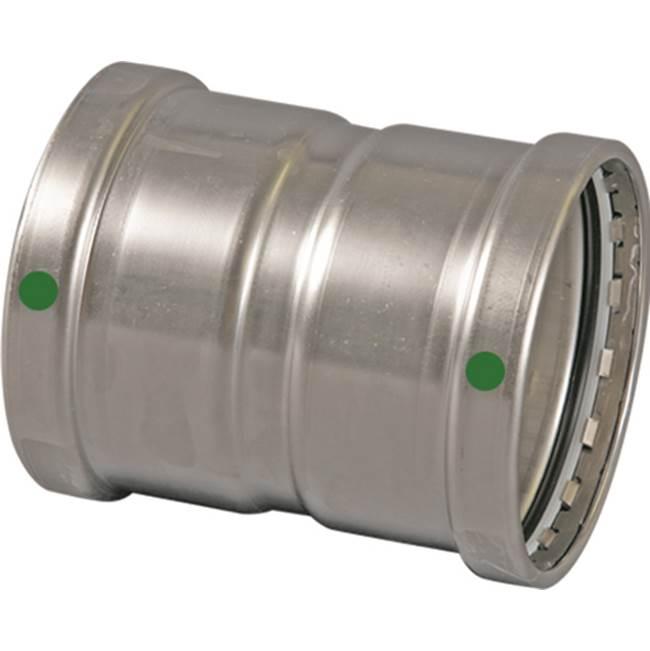

Viega ProPress® 316 80300 3 inch x 3 inch Press x Press 316 Stainless Steel Coupling with Stop

Mfg Part #: 80300

Part #: V80300

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerViega

BrandViega

Mfg Part #80300

Part #V80300

Sold AsEach

Package Qty0

Min Order Qty1

Weight1.51 lb

ApplicationFor hydronic heating (with glycol), chilled water, low pressure steam (15 psi maximum), isopropyl alcohol, latex paint, phosphoric acid, compressed air, non-medical gases and vacuum (29.2 inHg maximum at 68 deg F) applications

Description

Coupling with Stop, Sub Brand: ProPress® 316, Nominal Size A: 3 inch, Nominal Size B: 3 inch, Connection Type: Press x Press, Material: 316 Stainless Steel, Pressure Rating: 200 psi, Temperature Rating: 0 - 250 Deg F, Length: 4-59/64 inch, Model No: 4015XL, For Use With: Viega ProPress® Stainless Tubing, Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F), Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
