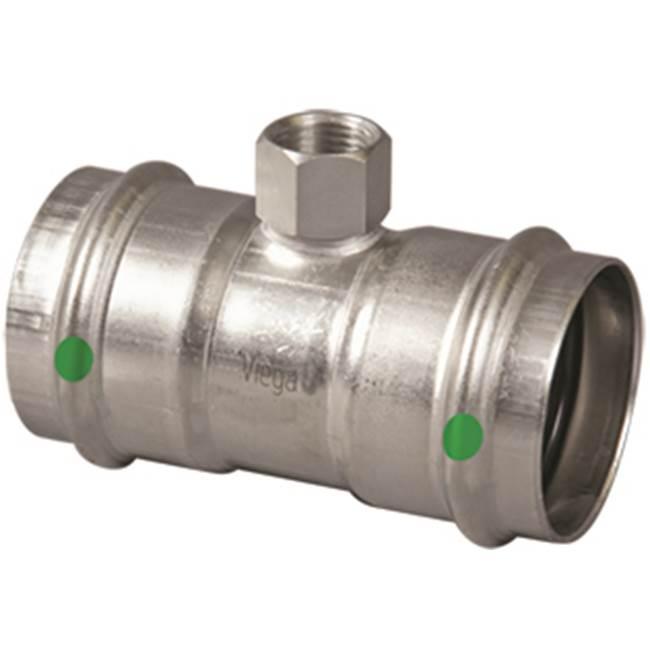

Viega ProPress® 316 80900 1-1/2 inch x 1-1/2 inch x 3/4 inch Press x Press x FNPT 316 Stainless Steel Reducing Tee

Description

Reducing Tee, Sub Brand: ProPress® 316, Nominal Size A: 1-1/2 inch, Nominal Size B: 1-1/2 inch, Nominal Size C: 3/4 inch, Connection Type: Press x Press x FNPT, Material: 316 Stainless Steel, Pressure Rating: 200 psi, Temperature Rating: 0 - 250 Deg F, Dimensions: 5.354 inch L, Model No: 4017.2, For Use With: Viega ProPress® Stainless Tubing, Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F), Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002

Features

• EPDM sealing elements
