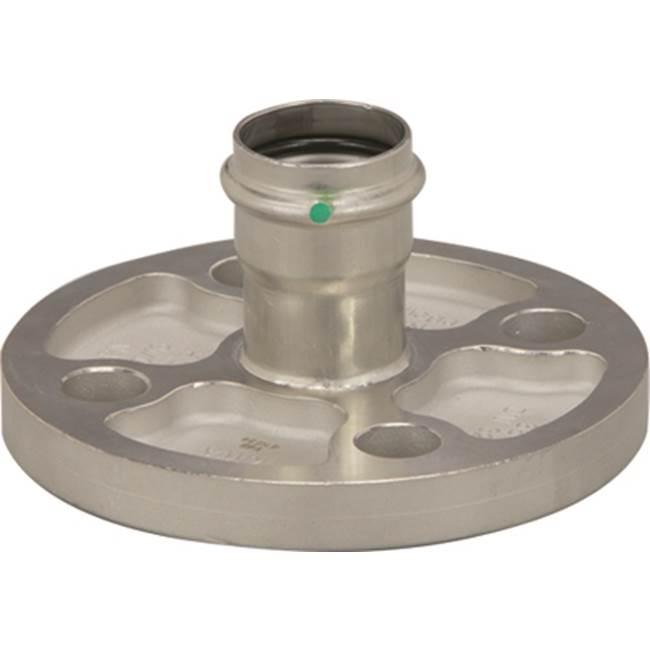

Viega ProPress® 316 81045 1 inch x 3-1/8 inch Press x Bolt Pattern 316 Stainless Steel Flange Adapter

Mfg Part #: 81045

Part #: V81045

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerViega

BrandViega

Mfg Part #81045

Part #V81045

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0 lb

ApplicationHydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases and Vacuum (29.2 inHg Maximum at 68 deg F) Applications

Description

Flange Adapter, Sub Brand: ProPress® 316, Nominal Size: 1 inch x 4 inch, Connection Type: Press x Bolt Pattern, Material: 316 Stainless Steel, Pressure Rating: 200 psi, Temperature Rating: 0 - 250 Deg F, Outer Diameter: 4.33 inch, Dimensions: 2.51 inch L, Flange Thickness: 0.46 inch, Bolt Diameter: 0.63 inch, Bolt Circle Diameter: 3-1/8 inch, Model No: 4059, For Use With: Viega ProPress® Stainless Tubing, Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F), Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
