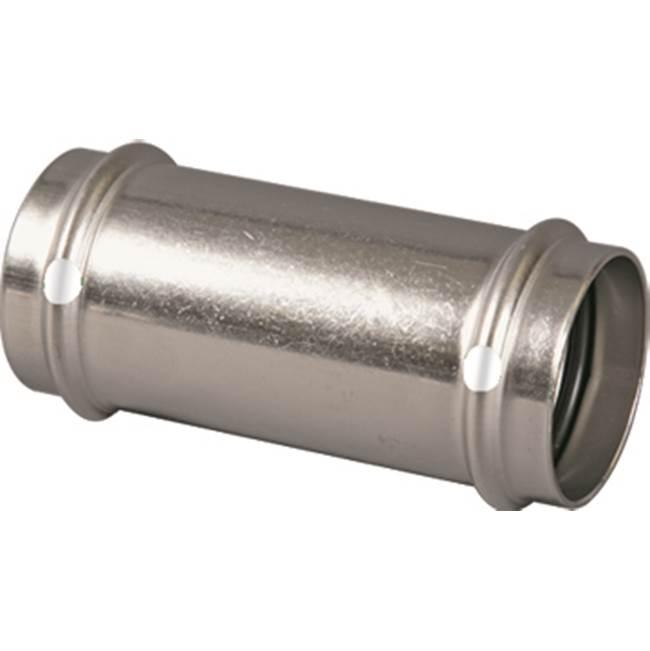

ProPress 3/4 inch 304 Stainless Steel Coupling with No Stop, Press x Press
ViegaPress Couplings & Branch Connectors

ProPress 3/4 inch 304 Stainless Steel Coupling with No Stop, Press x Press

Mfg Part #: 85317

Part #: V85317

Sold As: 1/Each

CPN: Add CPN

Sign in for Availability

Sign in for price

1
Email counterRequest quote

Specifications

ManufacturerViega
BrandViega
Mfg Part #85317
Part #V85317
Sold AsEach
Package Qty0
Min Order Qty1
Weight1.37 lb
Standards/ApprovalsABS Approved|ASME B31/A312/A554|Bureau Veritas Certified|CRN 13492.5 A/B/C|DNV-GL Certified|ICC ES LC1002|Lloyd's Register Certified|NFPA 13/13D/13R|ORD-C213|UL/ANSI 213/852
ApplicationFor hydronic heating (with glycol), chilled water, low pressure steam (15 psi maximum), compressed air, fire sprinkler (175 psi maximum), acetylene, fuel oil, diesel fuel (125 psi), lube oil and vacuum (29.2 inHg maximum at 68 deg F) applications

Description

Coupling with No Stop, Nominal Size: 3/4 inch x 3/4 inch, Connection Type: Press x Press, Material: 304 Stainless Steel, Pressure Rating: 200 psi, Temperature Rating: 0 to 250 Deg F, Length: 2.272 inch, Includes: FKM Seal, Standards: ASME B31.1, ASME B31.3, ASME B31.9, ASTM A312, ASTM A554, CRN 13492.5, ABS, CRN 13492.5

Features

  • Flameless, fast and easy to use
  • Permanent reliable connections
  • Consistent professional appearance
  • Less equipment required
  • Environmentally friendly connection system
  • Versatility of fittings and tools for a variety of applications
  • ProPress system with smart connect

Resources

Video LinkCatalogWebsiteInstallation InstructionsWarranty InformationCatalogInstruction/Installation ManualSpecification Sheet
