ViegaPress Elbows

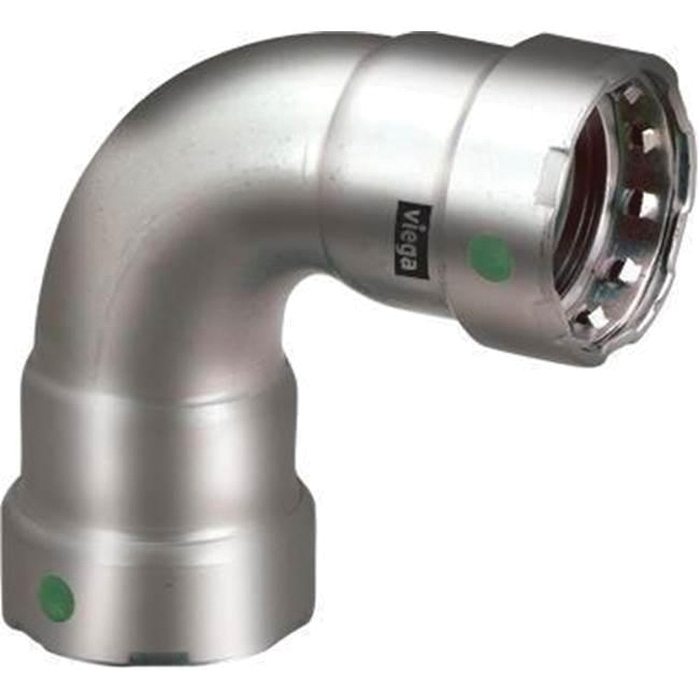

Viega 90020 90 deg Elbow, 1-1/2 in Press, 90 deg, Stainless Steel, 200 psi, 0 to 250 deg F

Mfg Part #: 90020

Part #: V90020

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerViega

BrandViega

Mfg Part #90020

Part #V90020

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0

WarrantyLimited

IncludesEPDM Sealing Elements

ApplicationFor low pressure steam, industrial gases, potable water, caustic solutions, acid solutions, vacuum and process water (non-potable) applications

Description

Viega 90 deg Elbow, 1-1/2 in Fitting, Sub Brand: MegaPress, 90 deg Elbow Fitting, 90 deg Bend Angle, 1-1/2 in, Stainless Steel Fitting, 1-1/2 in, Press Connection, Stainless Steel, 200 psi, 0 to 250 deg F, Applications: Chilled Water, Compressed Air, Commercial, Industrial, Potable Water and Marine, Standards/Approvals: ABS Approved, ANSI/CAN/UL 213, ASME B31/B31.1/B31.3/B31.9, ASTM A312/A554, Bureau Veritas Approved, CRN 23076.5 A/B/C, DNV-GL Approved, FM Class 1920, IAPMO CPC/NSPB/UMC/UPC/PS-117, ICC IMC/IPC/IRC, ICC-ES LC1002, Lloyd's Register Certified, NBCC Approved, NFPA 13/13D/13R, NPCC Approved, NSF/ANSI 61/372, Material Construction: 316 Stainless Steel, For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
