Watts®Ball Valves

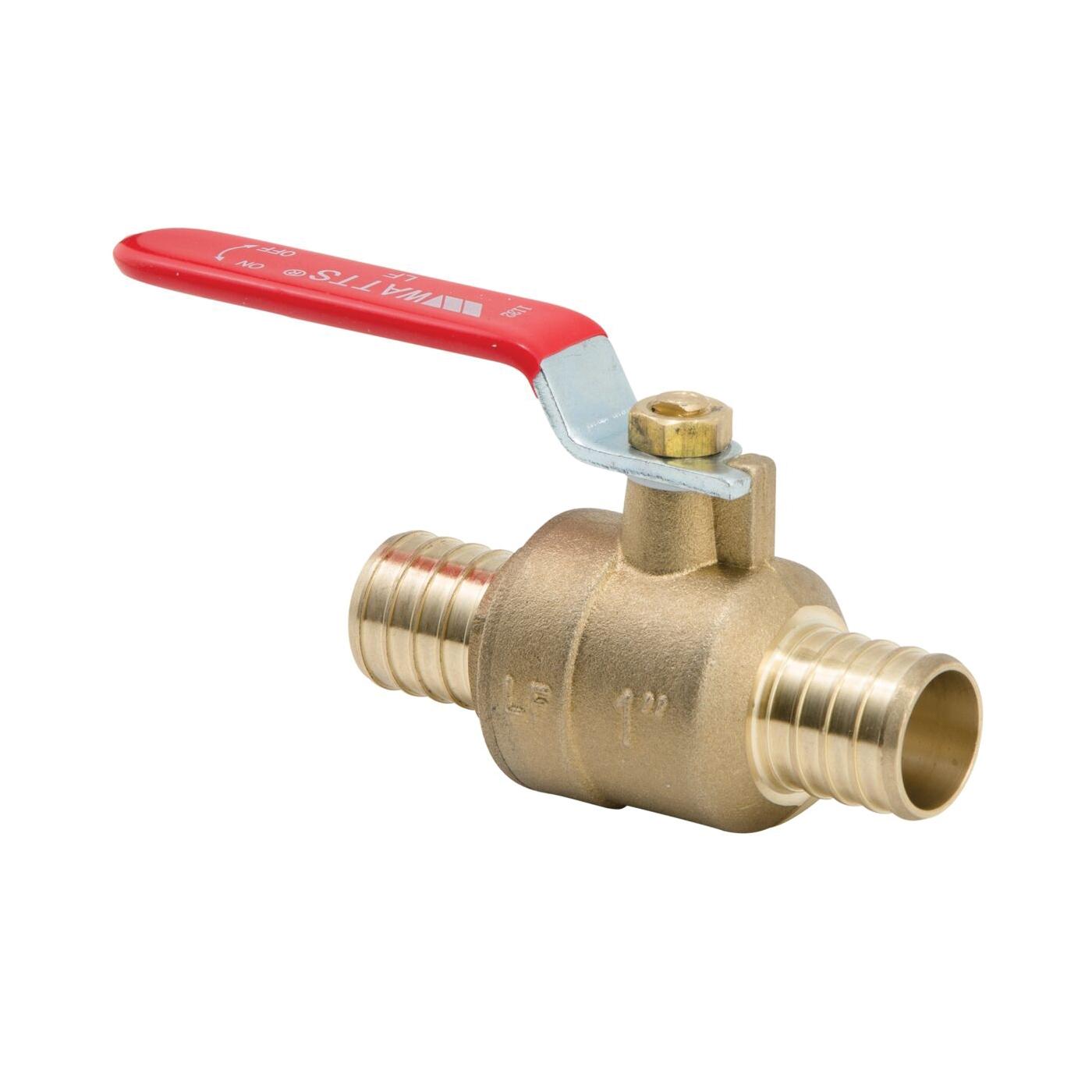

WATTS® LFWPBV Series 1/2 inch x 1/2 inch PEX Barb x PEX Barb Lead Free Brass 2-Piece Full Port Ball Valve

Mfg Part #: 0653000

Part #: W0653000

Sold As: 1/Each

CPN: Add CPN

Email counter Request quote

Specifications

ManufacturerWatts Water Technologies

BrandWatts®

Mfg Part #0653000

Part #W0653000

Sold AsEach

Package Qty0

Min Order Qty1

Weight0.0

Standards/ApprovalsASTM F1807

Description

Ball Valve, Series: LFWPBV, Type: Full Port, 2-Piece, Nominal Size: 1/2 inch x 1/2 inch, Connection Type: PEX Barb x PEX Barb, Operating Pressure: 100 to 160 psi, Body Material: Lead Free Brass, Ball Material: Lead Free Brass, Seat: Virgin PTFE, Stem: Brass, Packing: Virgin PTFE, Construction: Lead Free, Temperature Rating: 73 to 180 Deg F, Dimensions: 2-9/16 inch L x 1-3/8 inch Centre to Top x 3 inch Lever L, Applications: For use in PEX Piping Systems, Standards/Approvals: ISO 9001:2008 Certified, ASTM F-1807, ASTM F877

Features

Series LFWPBV full port, lead free brass ball valves with PEX ends are designed for use in PEX piping systems. They feature brass PEX end tailpieces designed for easy crimping into a PEX piping system. The Series LFWPBV features lead free construction to comply with lead free installation requirements
