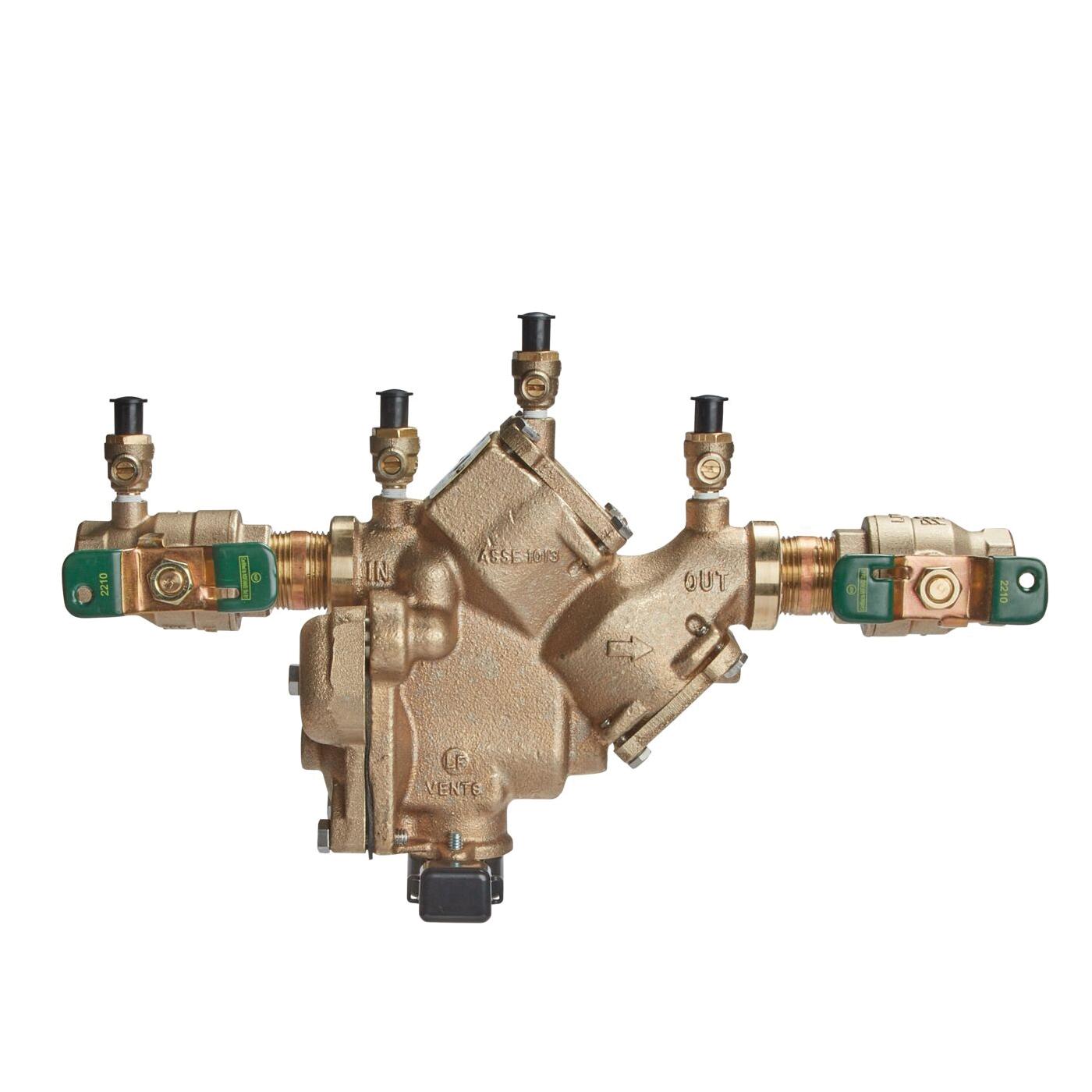

WATTS® LF909 Small Series F391009 Reduced Pressure Zone Backflow Preventer Assembly, 1 in, FNPT x FNPT, Lead-Free

Description

WATTS® Reduced Pressure Zone Backflow Preventer Assembly, LF909 Small Series, 1 in Nominal, FNPT x FNPT Connection, Full Port, 175 psi, Manual Actuator, 15-3/8 in Inlet to Outlet Length, Lever Handle Operator, Copper Silicon Alloy Body, Lead-Free, 33 to 140 deg F, 9-7/8 in H

This 1 inch lead free reduced pressure zone backflow preventer assembly with its exclusive design incorporating the patented air-in and water-out principle for protection during an emergency condition prevents the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure. Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants. This assembly consists of a lead free body, quarter turn ball valve shutoffs with tee handles, check modules, replaceable seats, top mounted test cocks, and a pressure differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Lead free construction
• Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
• Compact for easy installation
• Quarter-turn ball valves with tee handles
• Horizontal or vertical (up or down) installation
• Top mounted test cocks
• No special tools are required for servicing
