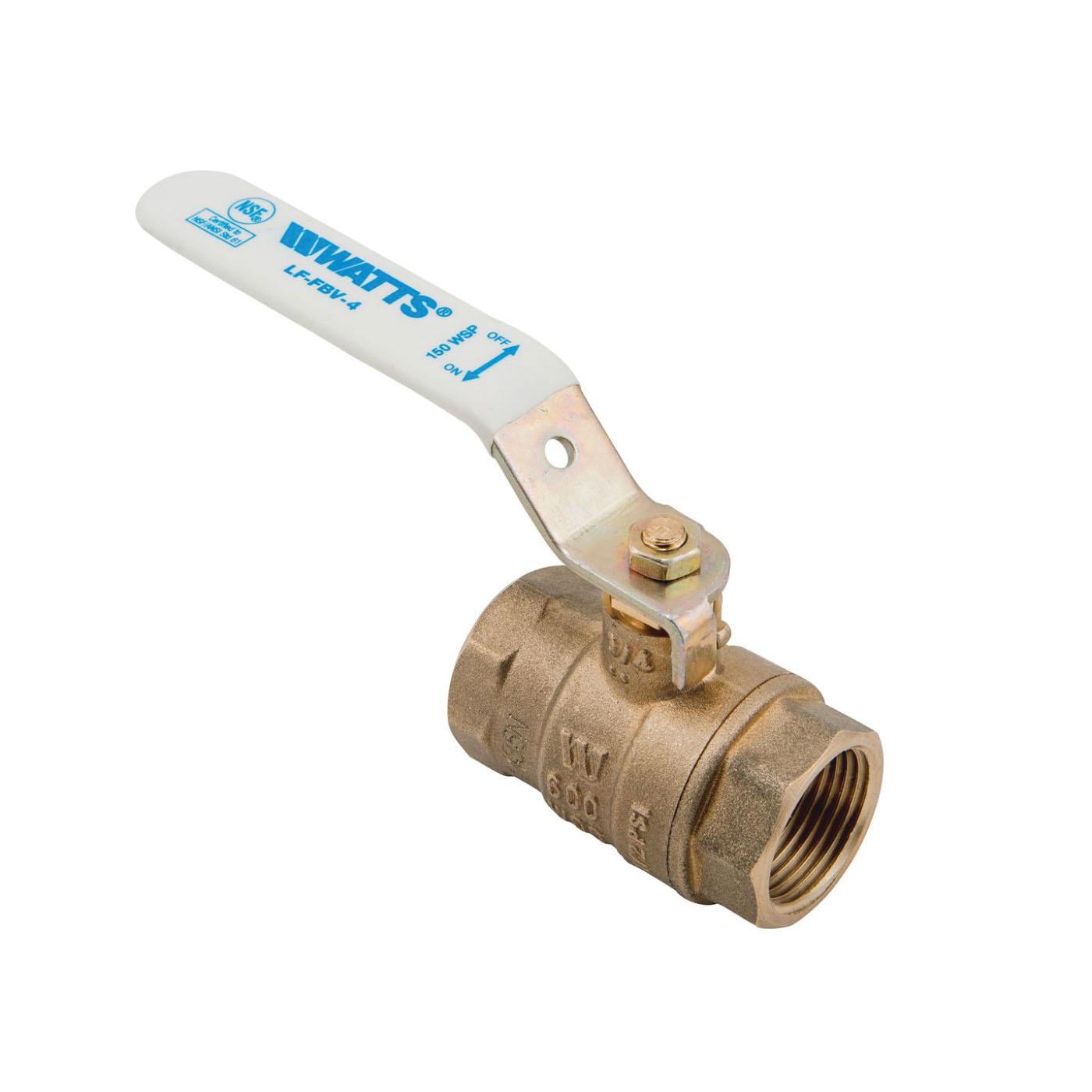

WATTS® FBV-4 Full Port Forged Brass Ball Valve, 1/2 inch, IPS x IPS

Description

Ball Valve, Full Port, FBV-4 Series, Nominal Size: 1/2 inch, IPS x IPS Connection, 600 psi Max. Pressure, 150 psi WSP Max. Steam Pressure, Water Oil and Gas Media, 2 Ports/Ways, 0.5 inch Opening, Forged Brass Body, Chrome Plated Brass Ball, Virgin PTFE Seat, Machined Brass Stem, Virgin PTFE Packing, Actuation/Operator: Standard Lever Handle, Construction: 2-Piece, Temperature Rating: -40 to 400 Deg F, Standards: MSS-SP-110

Features

• Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Adjustable stem packing gland provides longer service life
• Bottom loaded blowout proof stemMachined chrome-plated brass ball
