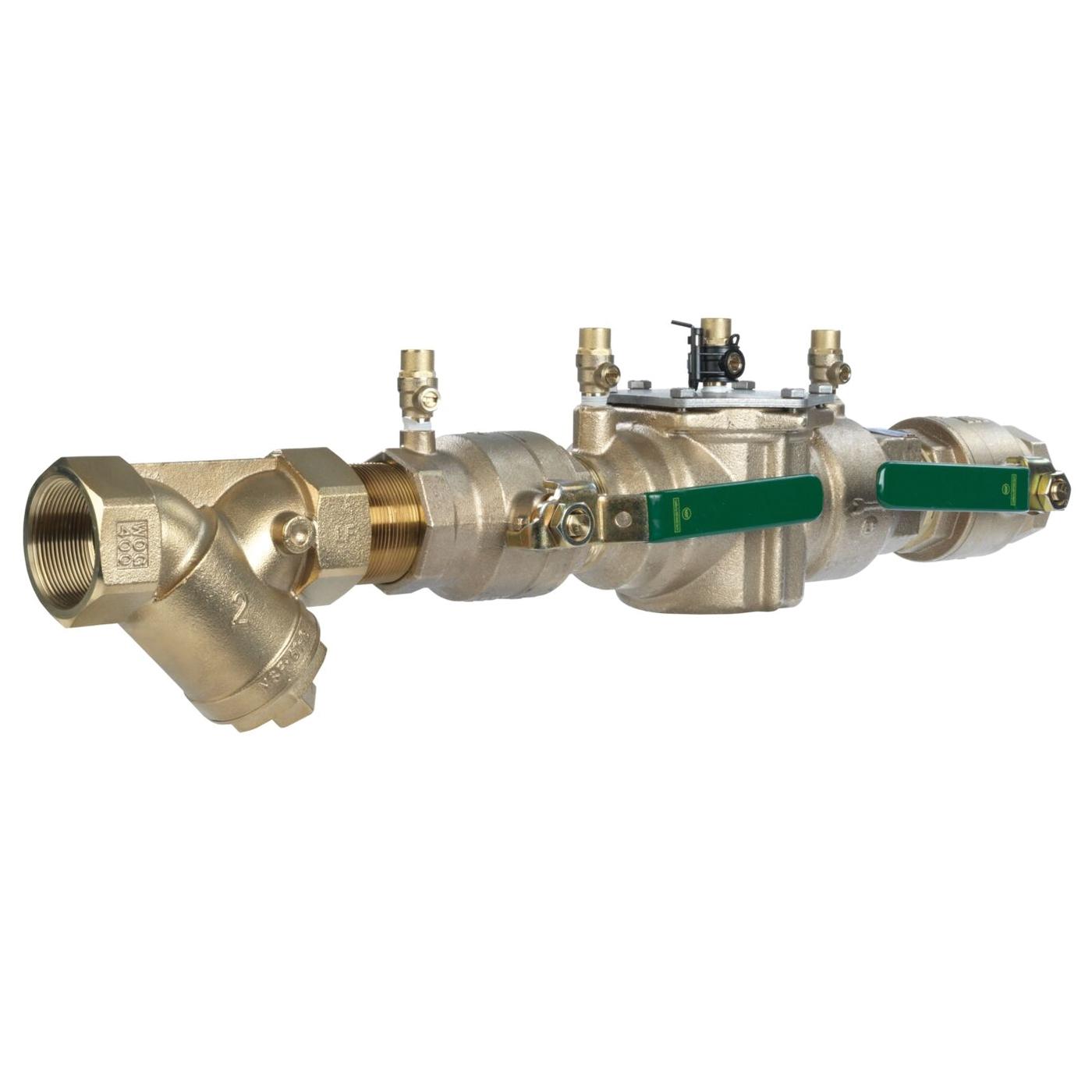

WATTS® LF007 Series T122617 Backflow Preventer Assembly With Single Access Cover, 2 in, FNPT x FNPT, Lead-Free

Description

WATTS® Backflow Preventer Assembly With Single Access Cover, LF007 Series, 2 in Nominal, FNPT x FNPT Connection, 175 psi Pressure, Media: Water, Quarter-Turn Ball Valve Operator, Silicone Body, Lead-Free/Contains Lead: Lead-Free, 180 deg F

This 2 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to back siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free cast copper silicon alloy body construction, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, replaceable check discs and seats, and strainer. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), irrigation management systems (IMS).

Features

• Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
• Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
• Lead free construction
• Modular compact design
• Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
• Replaceable seats and seat discs
• Strainer
