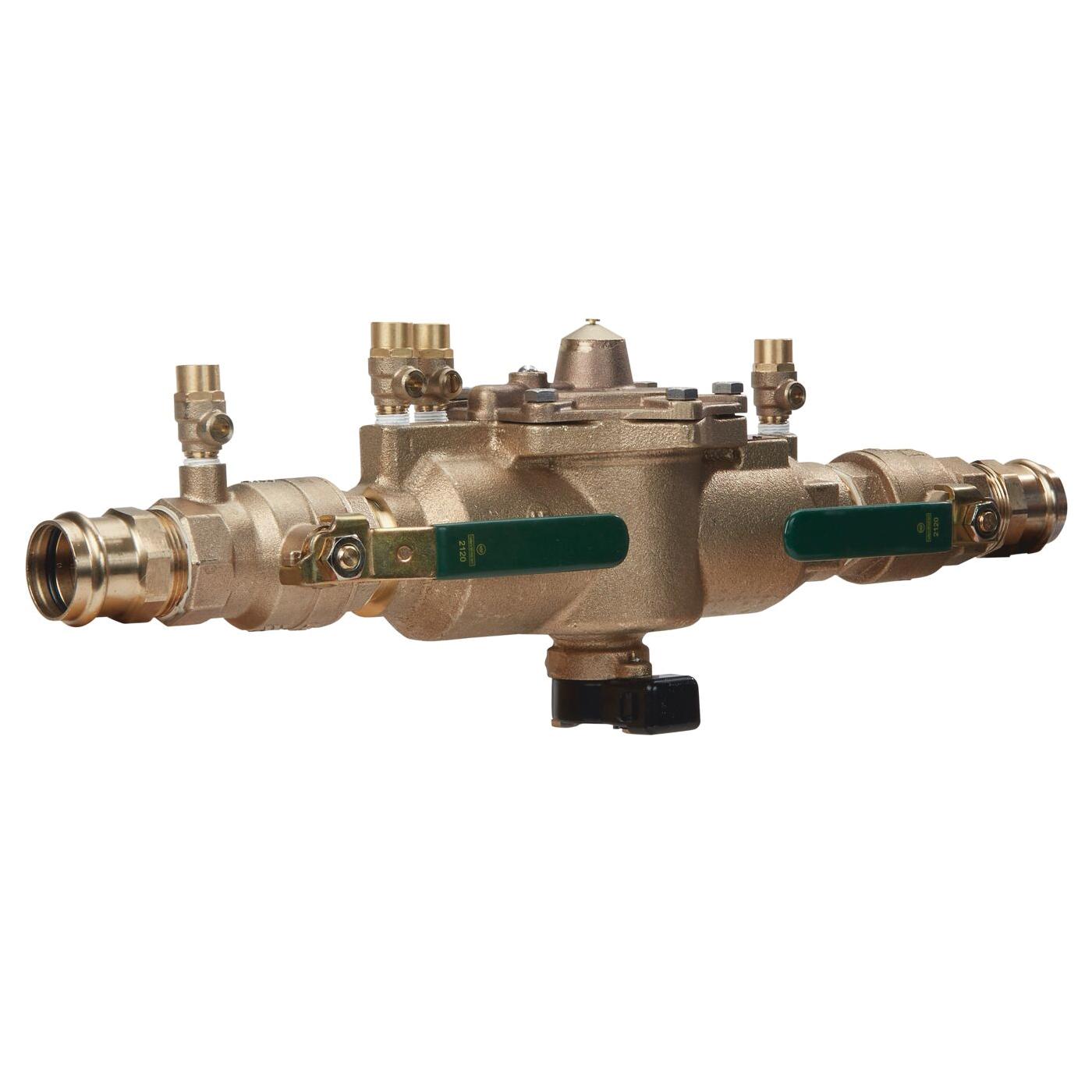

WATTS® LF009 Reduced Pressure Zone Assembly, 1-1/4 inch, 175 psi

Description

Reduced Pressure Zone Assembly, Lead-Free, LF009 Series, Nominal Size: 1-1/4 in, Operating Pressure 175 psi, Cast Copper Silicon Alloy Body, Silicone Rubber Disc, Actuation/Operator: Quarter-Turn Ball Valve, Standards: USC, ASSE No. 1013, AWWA C511, CSA B64.4, IAPMO 1563, Temperature Rating: 33 to 180 Deg F

Features

• Top entry - all internals immediately accessible
• Single access cover and modular check construction for ease of maintenance
• Replaceable seats for economical repair
• No special tools required for servicing
• Lead free cast copper silicon alloy body construction for durability 1/4 to 2 inch (8 to 50mm)
• Large body passages provides low pressure drop
• Internal relief valve for reduced installation clearances
• Fused epoxy coated cast iron body 2-1/2 inch and 3 inch (65 and 80mm)
• Compact, space saving design
• Captured springs for safe maintenance
• Ball valve test cocks - screwdriver slotted 1/4 inch to 2 inch (8 to 50mm)
