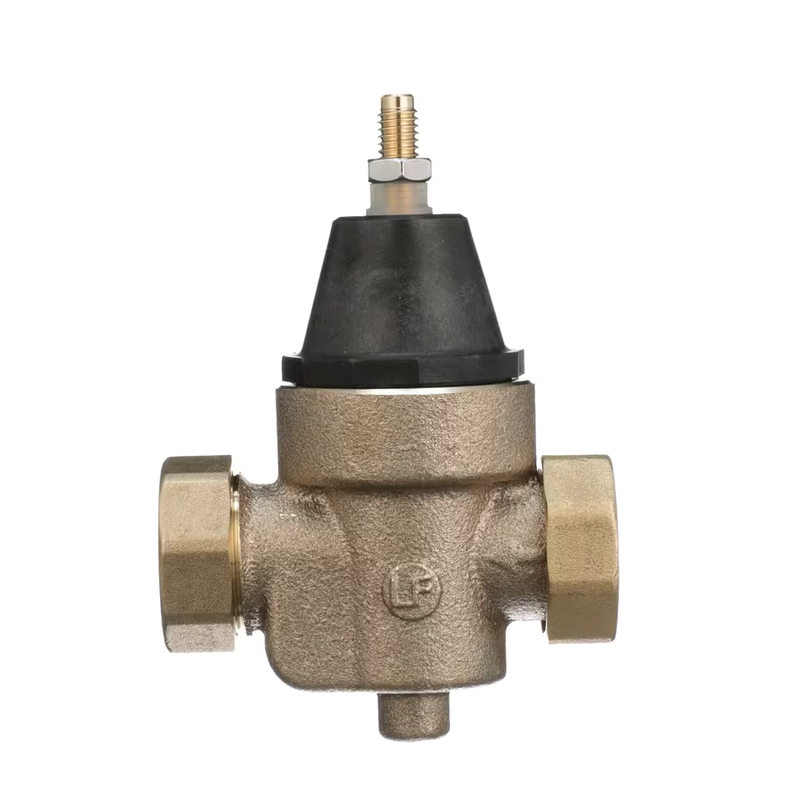

WATTS LFN45B Series 3/4 inch PEX Union x 3/4 inch PEX Union Lead-Free Copper Silicon Alloy Standard Water Pressure Reducing Valve
Watts®Pressure Reducing Valves and Regulators

WATTS LFN45B Series 3/4 inch PEX Union x 3/4 inch PEX Union Lead-Free Copper Silicon Alloy Standard Water Pressure Reducing Valve

Mfg Part #: 0009485

Part #: WLFN45BM1DUPEXF

Sold As: 1/Each

CPN: Add CPN

Sign in for Availability

Sign in for price

1
Email counterRequest quote

Specifications

ManufacturerWatts Water Technologies
BrandWatts®
Mfg Part #0009485
Part #WLFN45BM1DUPEXF
Sold AsEach
Package Qty0
Min Order Qty1
Weight0.0
Standards/ApprovalsASSE 1003|ANSI A112.26.2|Buy American Act Compliant|CSA B356|cUPC Certified|IAPMO Certified|MIL-V-18146B Type I|NSF/ANSI 61 Annex G

Description

Water Pressure Reducing Valve, Series: LFN45B, Type: Standard, Nominal Size: 3/4 inch, Maximum Pressure Rating: 300 psi Working, Connection Type: PEX Union x PEX Union, Body Material: Lead-Free Copper Silicon Alloy, Valve Seat: Thermoplastic, Height: 7-19/50 inch, Width: 5.63 inch, Trim: Bronze, Temperature Rating: 33 - 180 Deg F, Model No: LFN45BM1-DU-PEXXPEX, Adjustable Reduced Pressure Range: 25 - 75 psi, Standard Reduced Pressure Setting: 50 psi, Applications: For Commercial, Residential, Standards/Approvals: ANSI A112.26.2, ASSE 1003, CSA B356, ISO 9001-2008

Features

  • Lead-free body construction
  • Integral stainless steel strainer
  • Sealed spring cage for accessible outdoor or pit installations
  • PEX union inlet and outlet

Resources

Specification SheetCatalog
